2019 IFoG Furnace and Lehr at Stourbridge - Lehr Disassembly and Reassembly

Projects: 2019 Onwards   Daub Creation   Furnace Build   Lehr Build   Furnace Disassembly & Reassembly   Testing Furnace for Size

Lehr Disassembly & Reassembly   Collars, etc.   Assembly at Stourbridge   Glassblowing at Stourbridge   Disassembly at Stourbridge

Lehr Disassembly

After taking down the side walls, we removed the end walls using the location holes for the metal rods.

This left the firebox, which by now was dry. After removing the shelf support bars we sawed it into six sections, drilled location holes and removed each piece.

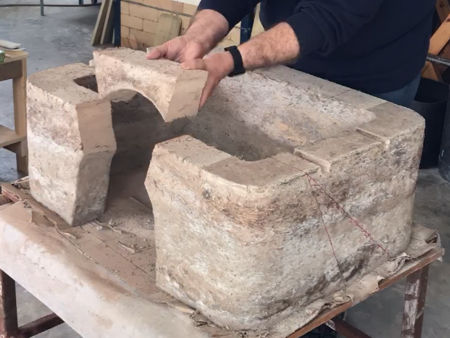

Removing the arch

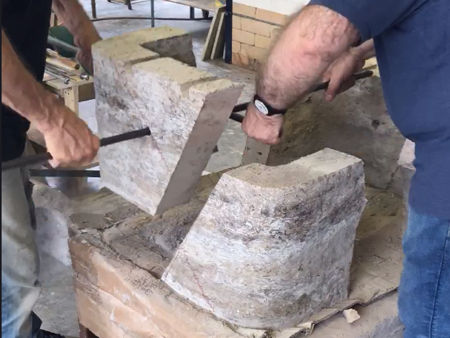

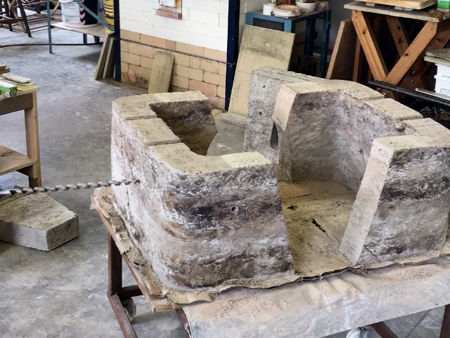

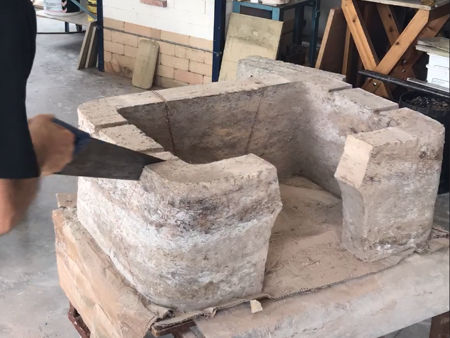

Sawing up the firebox Drilling location holes

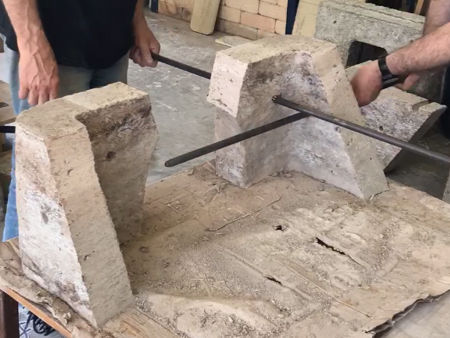

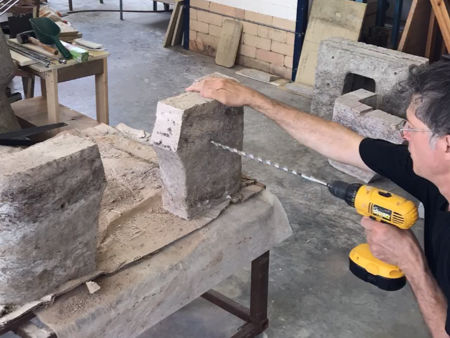

Drilling location holes Moving a section

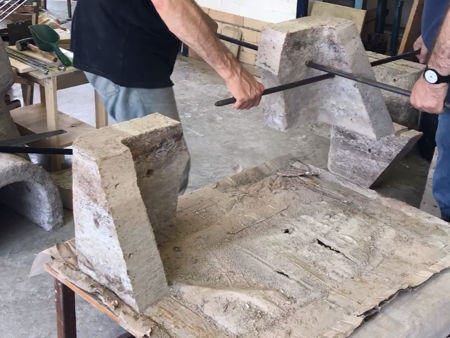

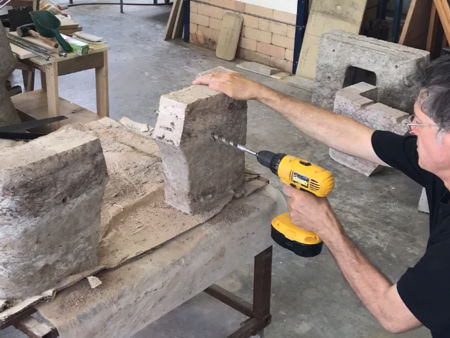

Moving a section Drilling location holes

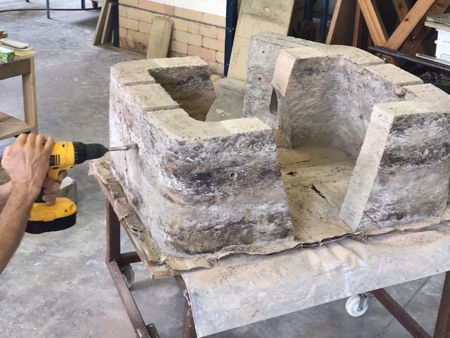

Drilling location holes Moving a section

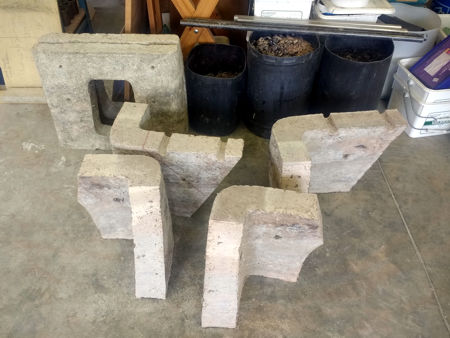

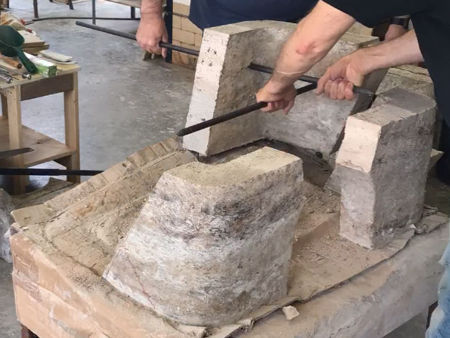

Moving a section The daub pieces


Lehr Reassembly

Reassembly was a straightforward reversal of disassembly.

A point to note is the double lower shelf with two offcuts of thin (c.1cm) kiln batts acting as spacers which insulated the upper surface from the heat of the flames. Also, as the two end walls were moveable, they could be pushed together to squeeze the side walls and hold them firm, and then held in place by the tie rods.

The flat roof of reclaimed kiln batts which supported a three inch insulating layer of twelve expanded vermiculite bricks sat on a thin layer of ceramic fibre blanket.

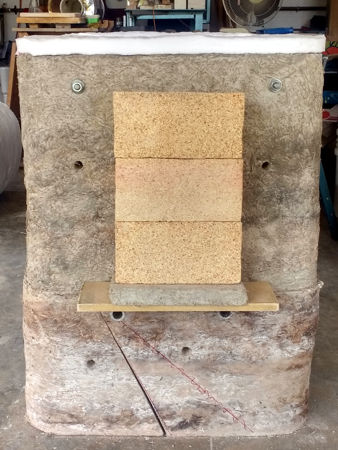

Each door was finished by drilling through three vermiculite bricks and bolting them together with mild steel tie rods and flat plates.

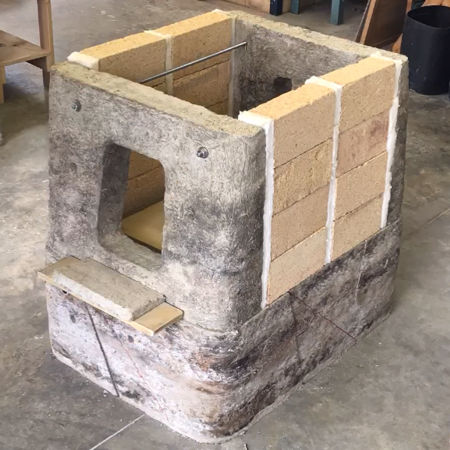

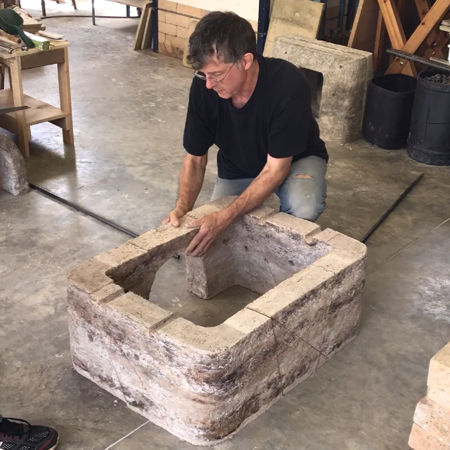

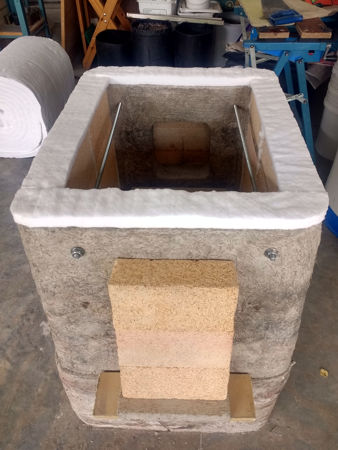

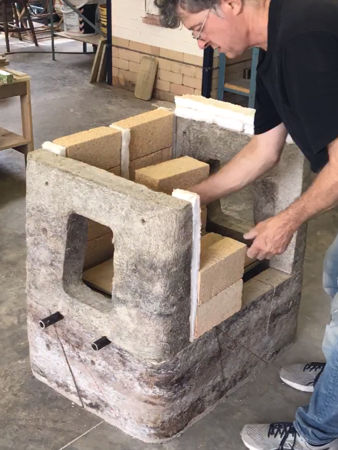

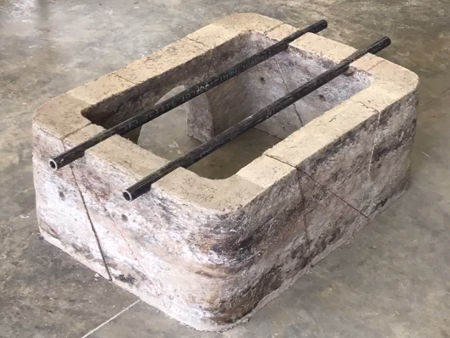

Reassembling the firebox

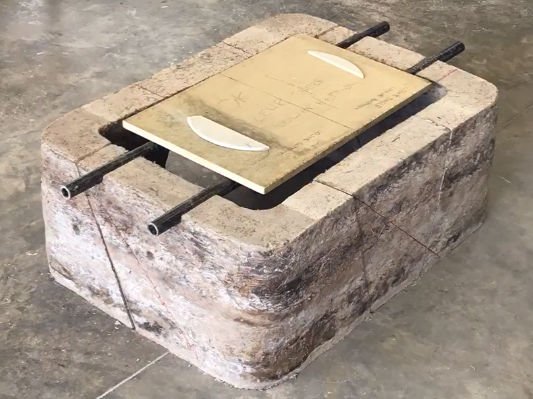

Positioning the shelf supports The first lower shelf with spacers

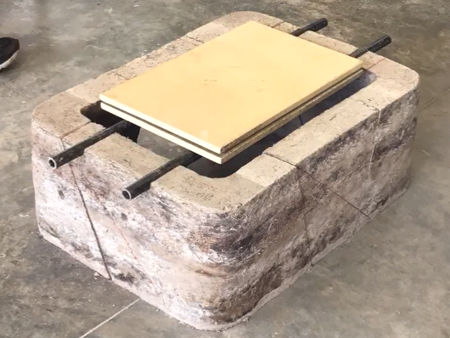

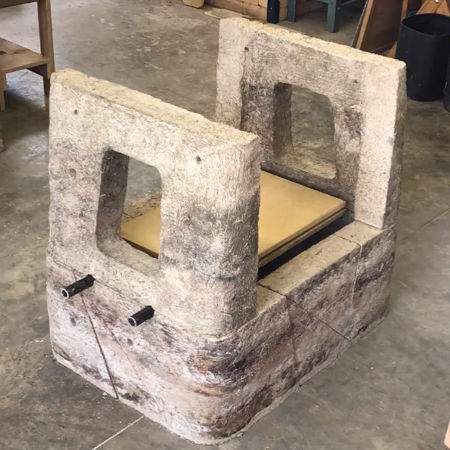

The second lower shelf The two end walls

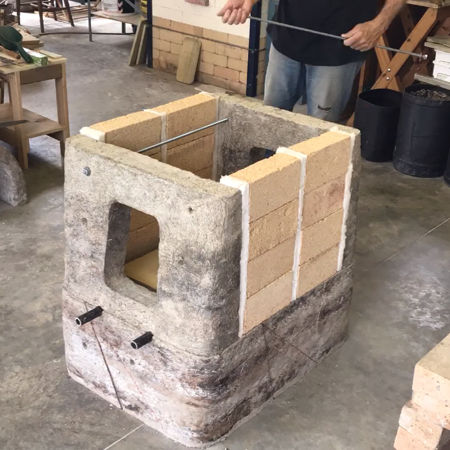

Assembling the side walls The first tie rod

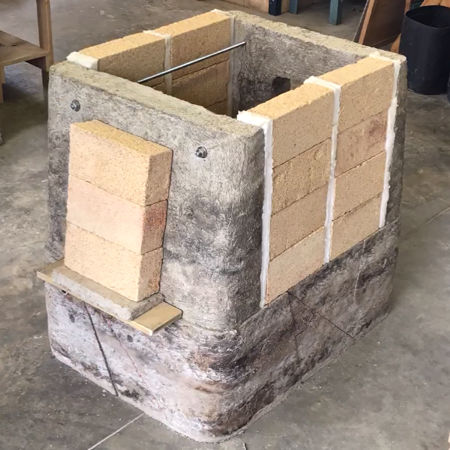

Door shelf added Door in position

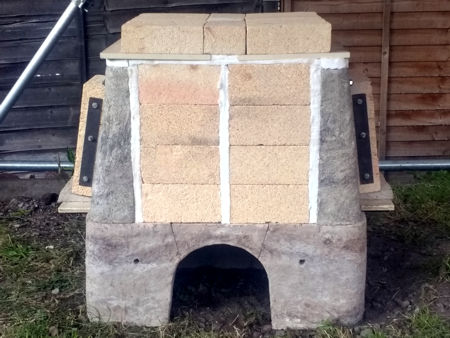

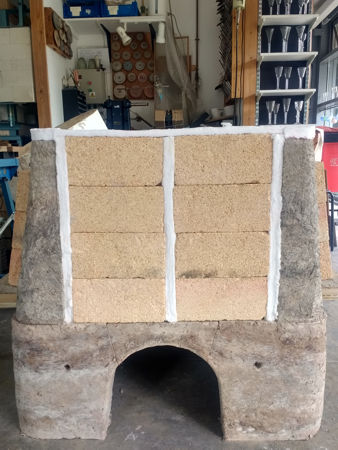

Front view Roof gasket in position

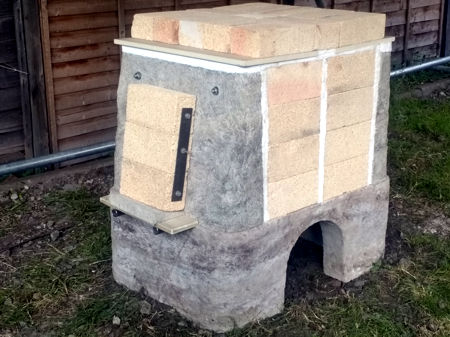

Side view Lehr fully assembled

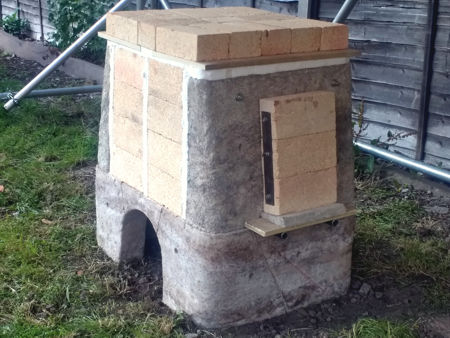

Lehr fully assembled Lehr fully assembled
