Dismantling the Old Lehr

The lehr needed to be rebuilt for two reasons: firstly, we needed a larger lehr; secondly, the end walls were becoming unstable and needed to be repaired. The aim was to add another ten inches in length, but keep the width and height unaltered.

It was carefully dismantled and the hearth was eventually completely removed in advance of a new hearth. We planned to re-use part of the old hearth as it still appeared to be sound, but it had, in fact, deteriorated badly due to the large amount of thermal shock it had undergone (this can be seen in the last four photos).

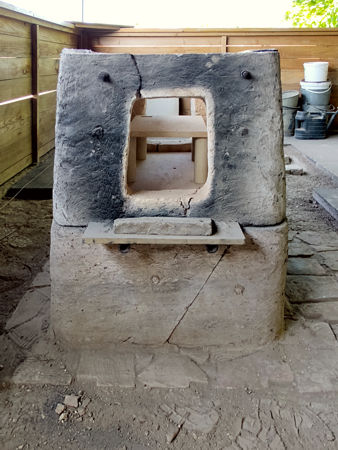

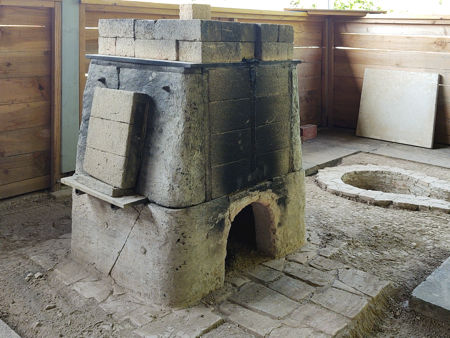

The old lehr

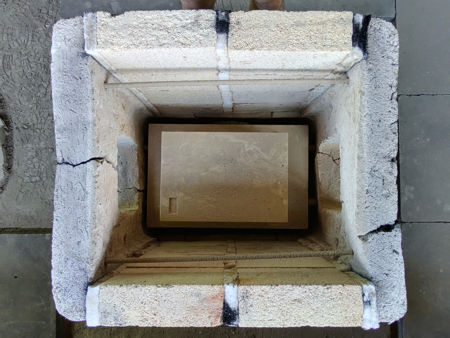

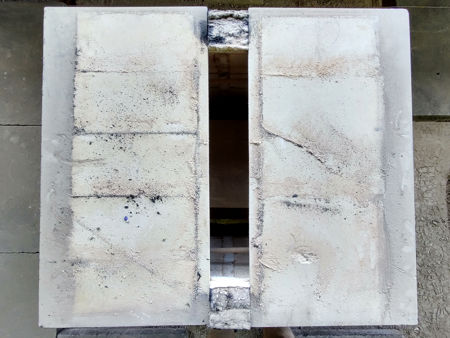

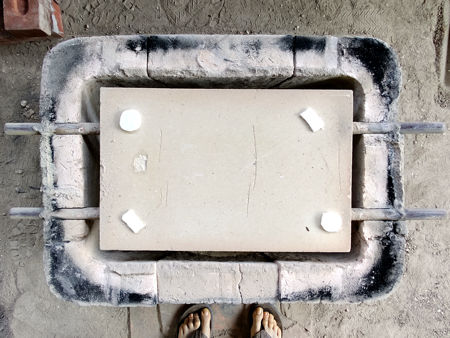

The kiln batt roof Inside the lehr

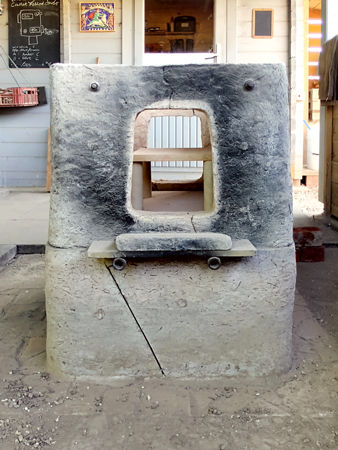

The left-hand end wall The right-hand end wall

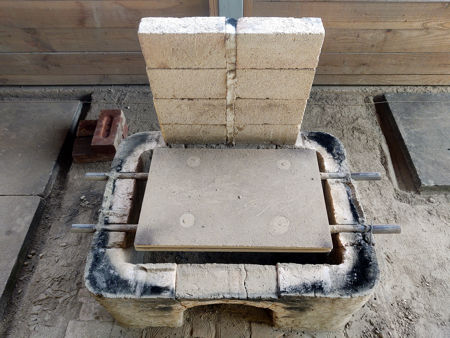

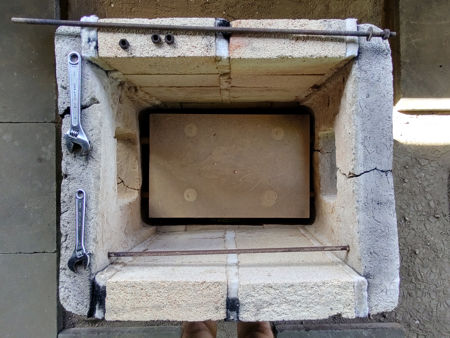

Removing the tie-rods Just the back wall remaining
The lower shelf with ceramic fibre blanket spacers The lower shelf

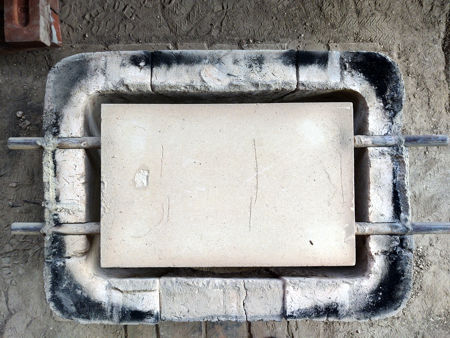

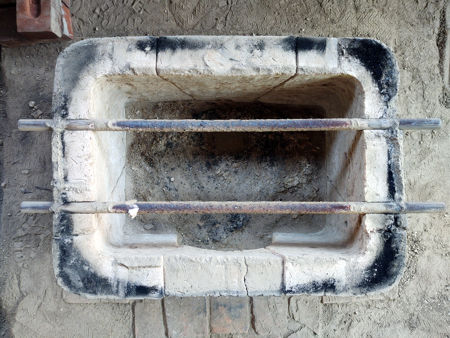

The shelf support bars in position The firebox

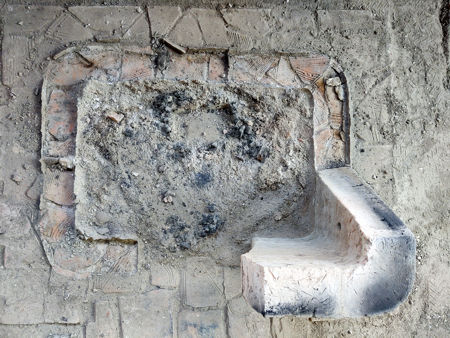

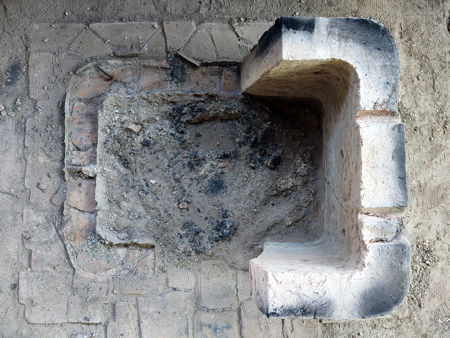

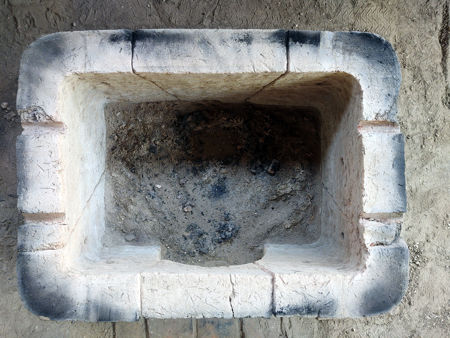

Half of the walls removed One piece left

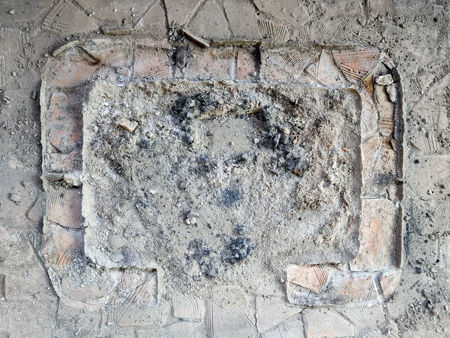

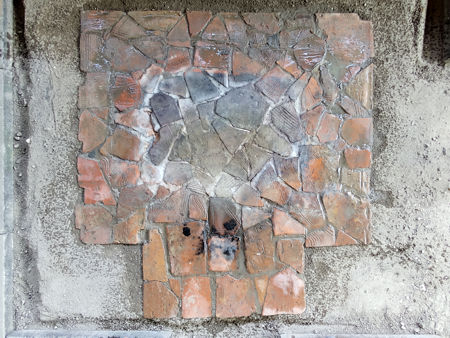

The hearth The hearth cleaned and dampened to show the tiles - note how the central tiles have greyed due to reduction

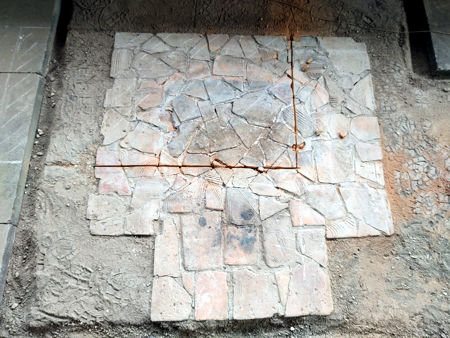

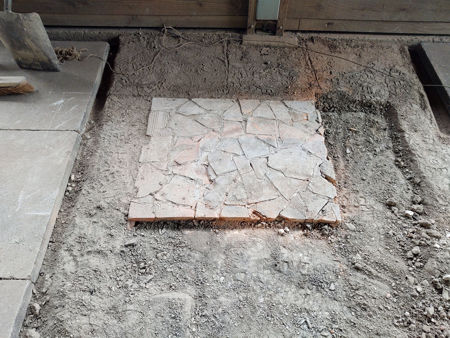

The portion to be re-used cut with an angle grinder The preserved portion (later removed)

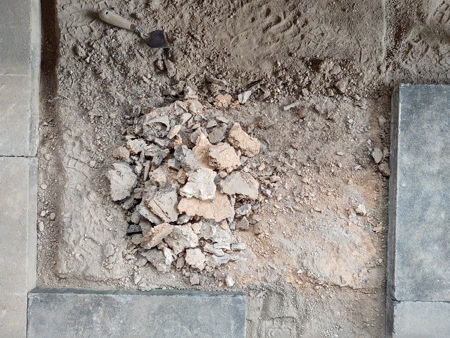

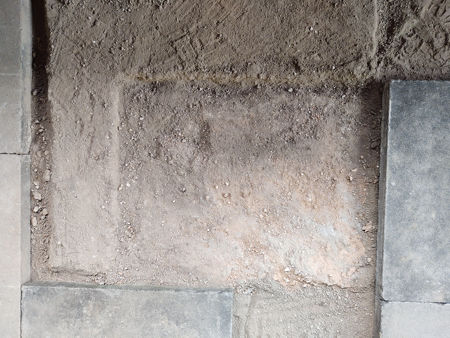

The front part of the hearth scraped away The area under the front part of the hearth cleaned before laying the slabs
