Experimental Melts

These two melts were part of a series of copper-containing, Roman-composition glasses undertaken by a postgraduate student at our workshops in Quarley.

One was melted from batch and the other using cullet. In addition, one of the melts had an addition of copper scale obtained by heating a copper tube and plunging it into cold water.

Both pots were left open to the furnace atmosphere (although its effect on the glass would have been minimal as the surface area of the exposed glass was small).

About six hours in the furnace at c.1050°C was enough to melt 150 grams of glass.

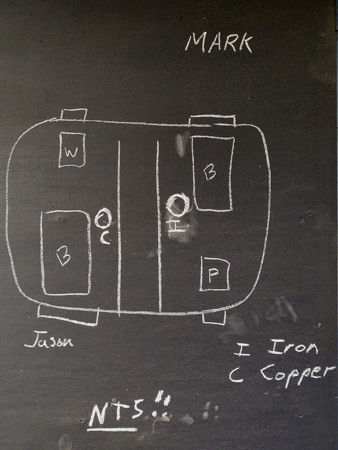

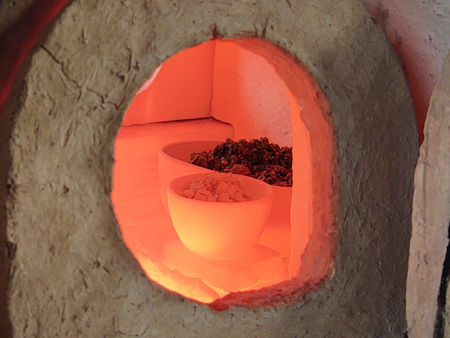

The position of the pots in the furnace

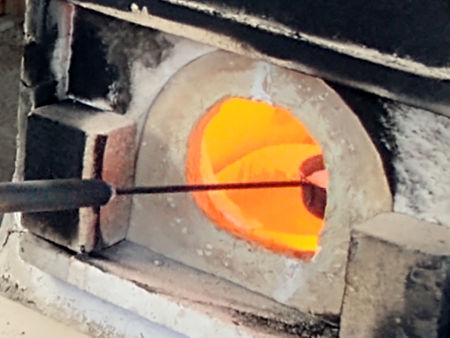

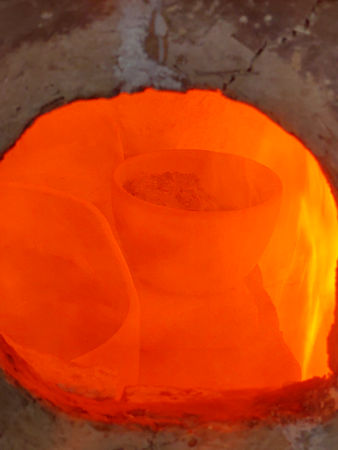

Charging one of the pots One of the pots in the furnace
One of the pots in the furnace Heating a copper tube

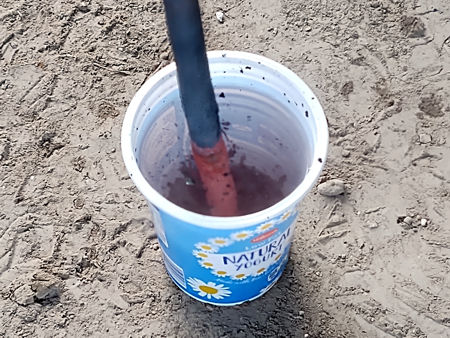

Plunging the copper tube into cold water to produce copper scale (oxide) One of the experiments

Glassblowing

Jason and Leslie

Our guest glassblowers were Jason Klein and Leslie Pierce.

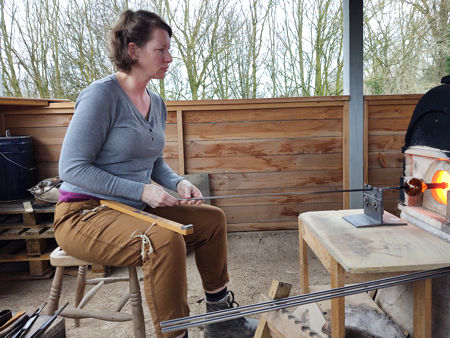

Here are some photos of them blowing at the furnace.

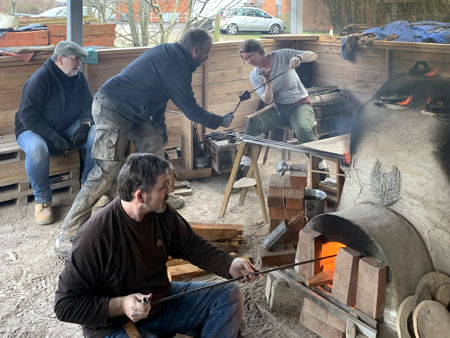

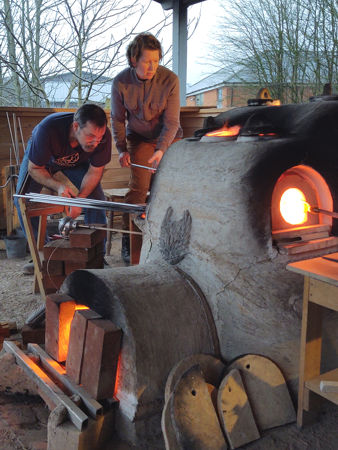

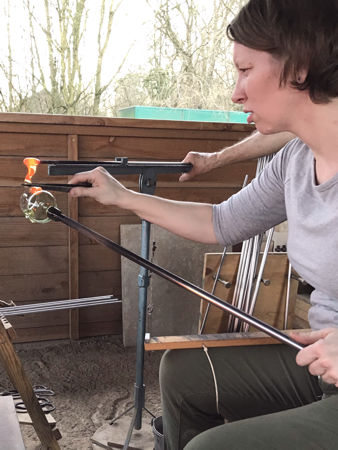

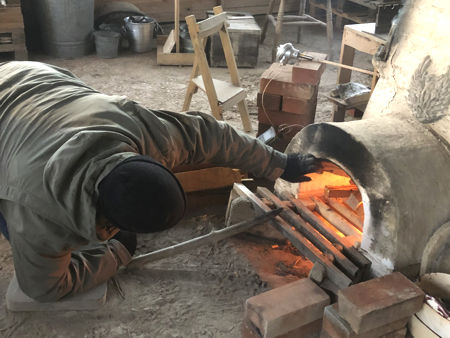

Jay stoking and Leslie with a finished vessel (Photo © Tracey Snape)

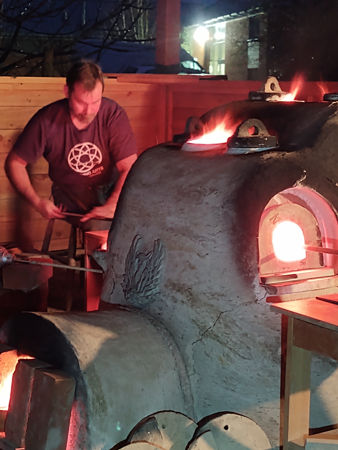

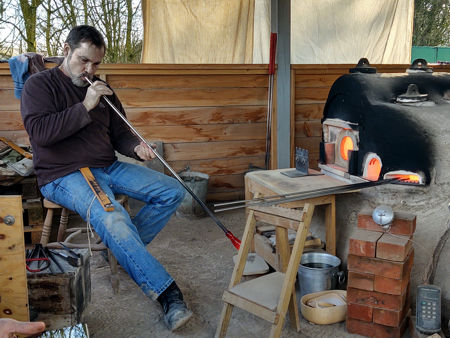

Jay blowing Jay stoking (Photo © Fiona Rashleigh)
Look what I made! Jay and Leslie

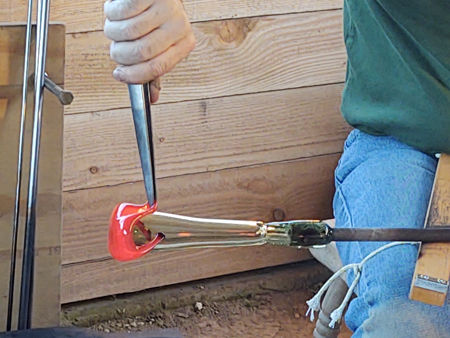

Adding a stem Adding a foot
Strike the pose! Blowing in the dark
Lily Pad vessel by Jason Lily Pad vessel by Jason
Lily Pad vessel by Jason Concentration!

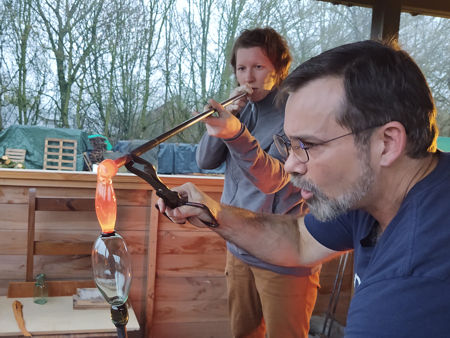

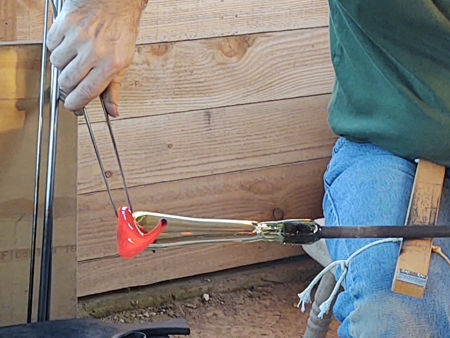

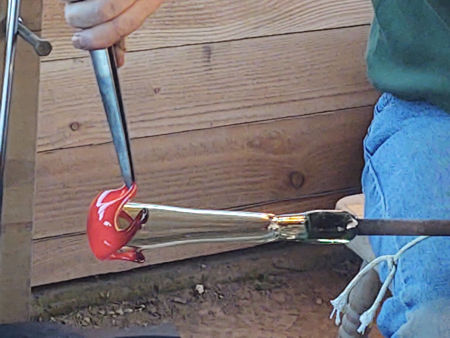

Adding a handle Adding a handle
Knocking-off a Lily Pad pitcher Leslie attaching a handle

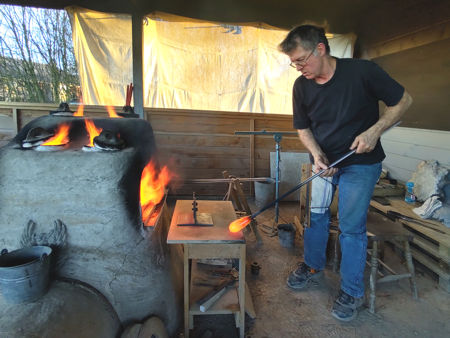

Photos of Mark blowing glass

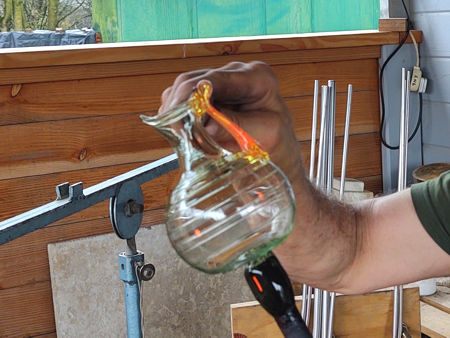

Putting a handle on a Roman spouted bottle.

Making a small goblet.

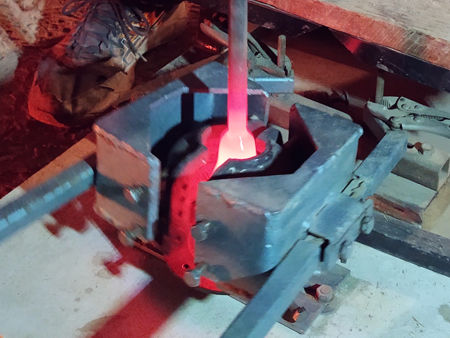

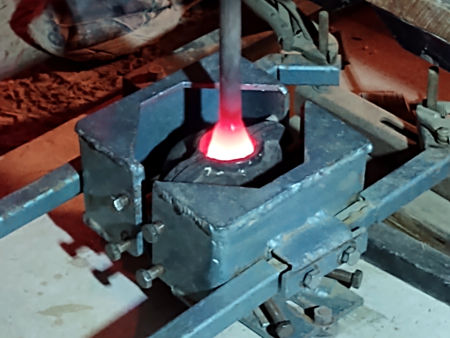

Mould-blowing a Gladiator Beaker. Note the bronze three-piece mould anchored in the 'cage'.

Making a barrel beaker. (The soffietta was very likely not used by Roman glassblowers.)

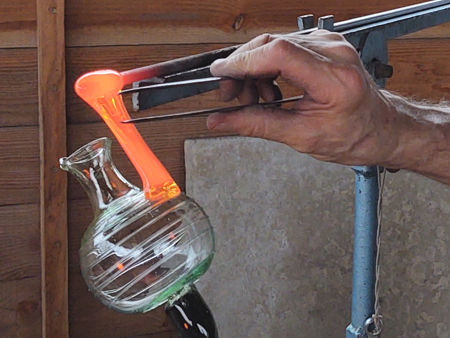

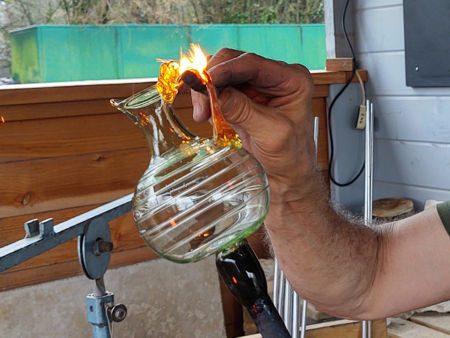

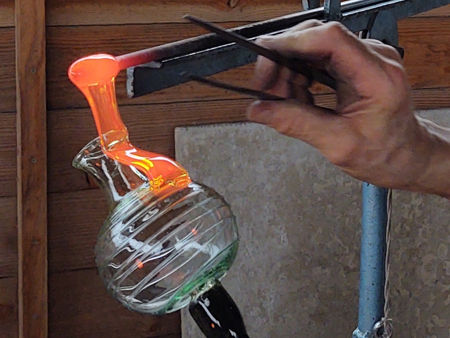

Attaching the handle
Attaching the handle Attaching the handle

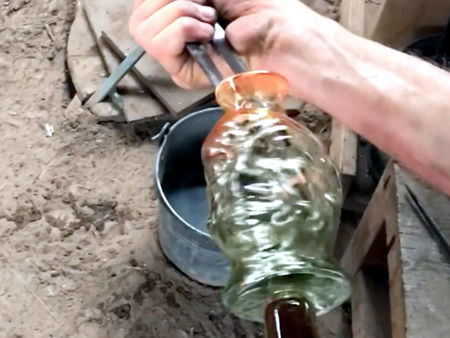

Shaping the handle Shaping the handle

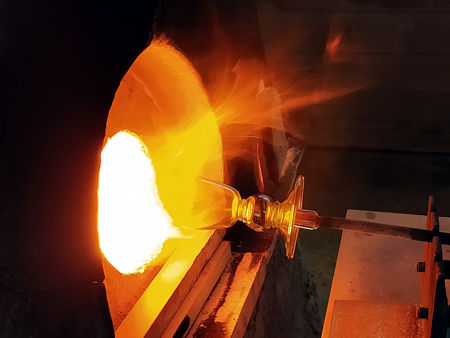

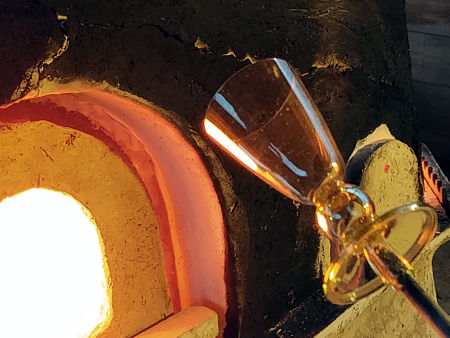

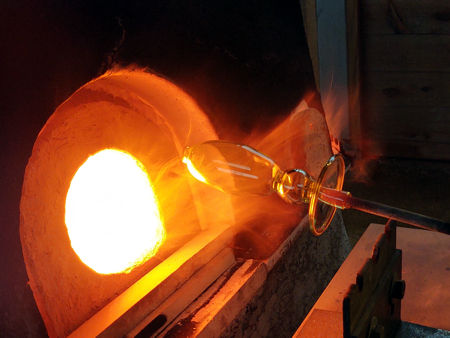

Reheating the goblet Reheating the goblet
The finished goblet Mould-blowing
Mould-blowing Mould-blowing

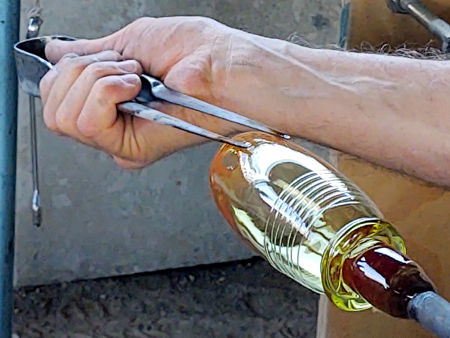

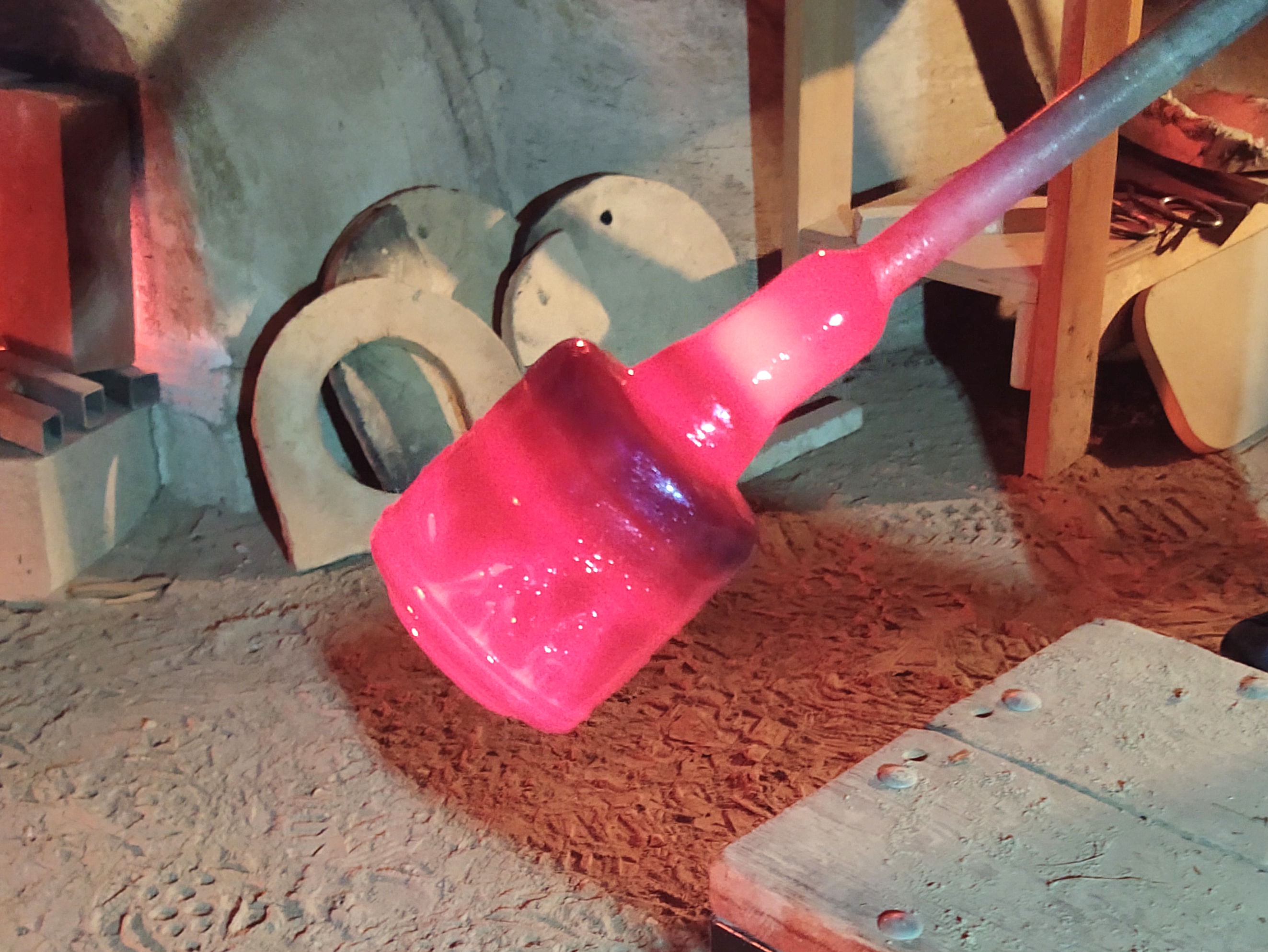

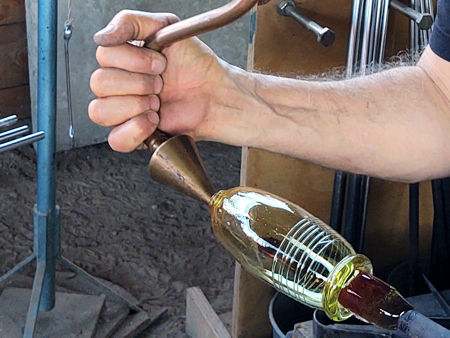

Shaping the barrel beaker Shaping the barrel beaker

Hexagonal Bottle

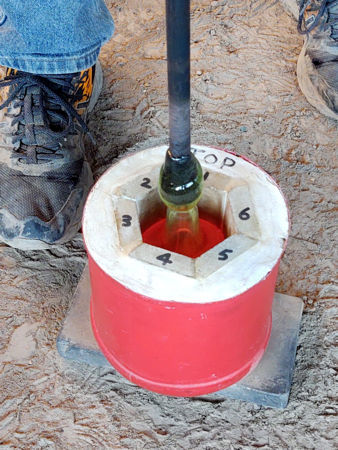

This is blown into a hexagonal-section mould to form the body. The mould we use is made from ceramic kiln batts, backed with plaster and contained inside a cut-down large plastic bottle.

The mould is open at the base so as to accept interchangeable base moulds, and the sides slope outwards very slightly so the vessel body can be easily removed.

The rib-making tool is based on a Roman wool comb.

To form the shoulder, the blowing iron is pushed downwards whilst blowing, and, with experience, the angle of the shoulder can be gauged correctly.


Marvering the gather to keep the base thick

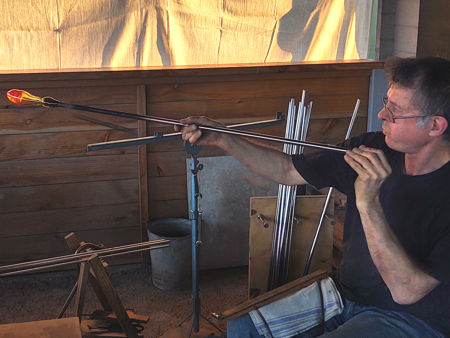

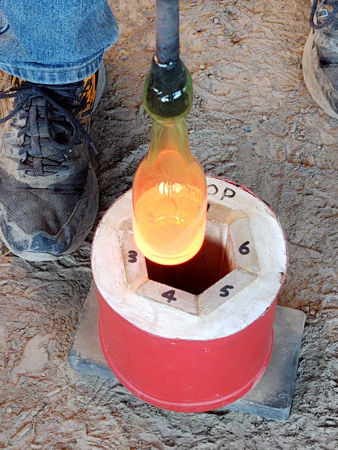

Starting to blow the parison Lowering the parison into the mould

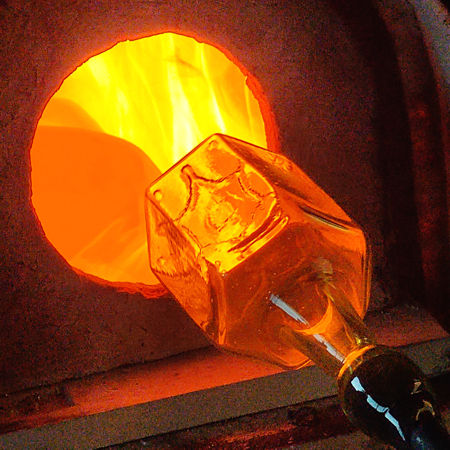

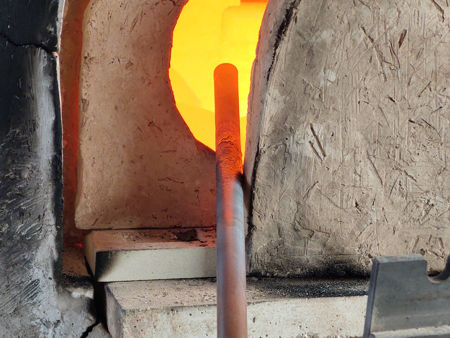

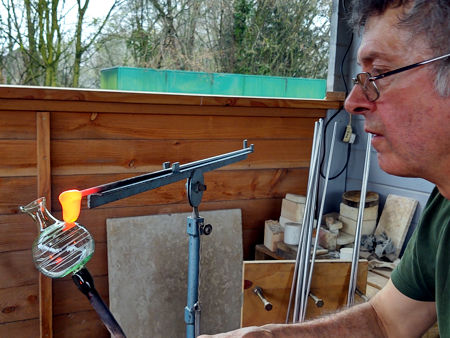

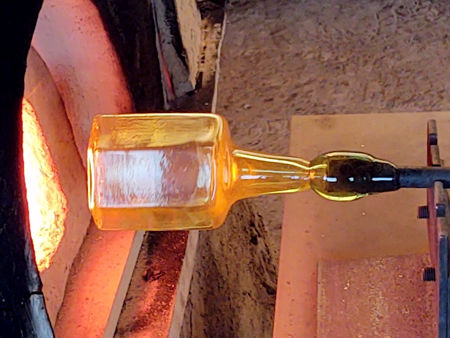

Blowing the bottle Reheating
Flattening the base Reheating

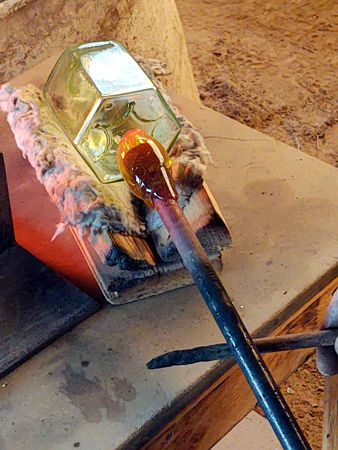

Attaching the punty Centering the vessel

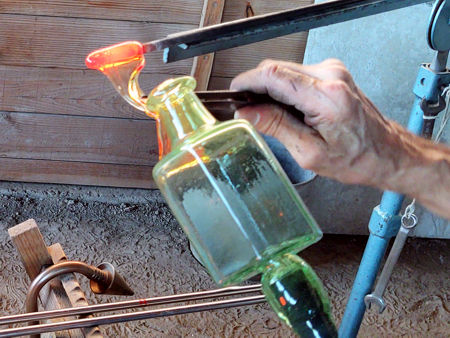

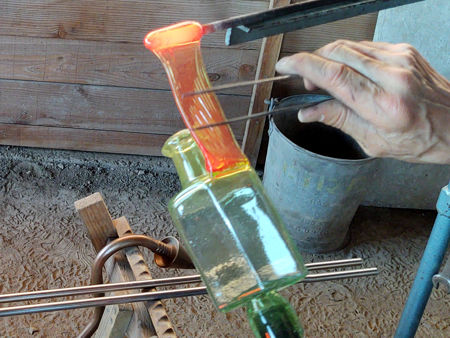

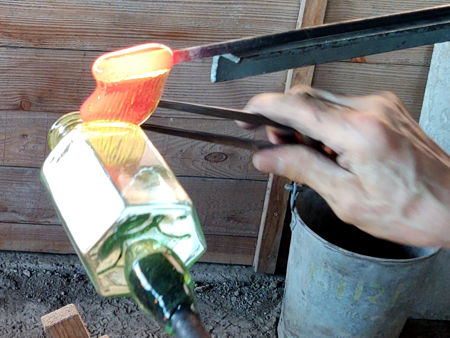

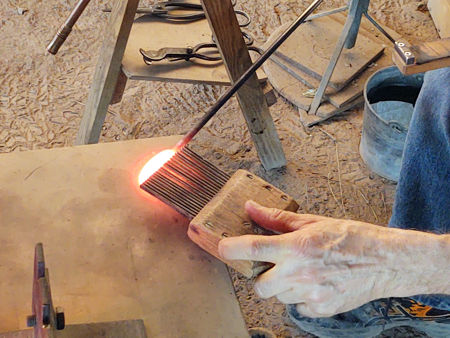

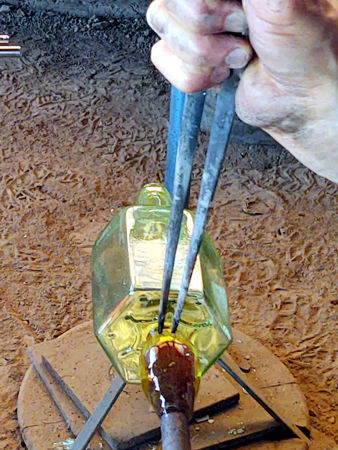

Forming the ribs on the handle gather Attaching the handle

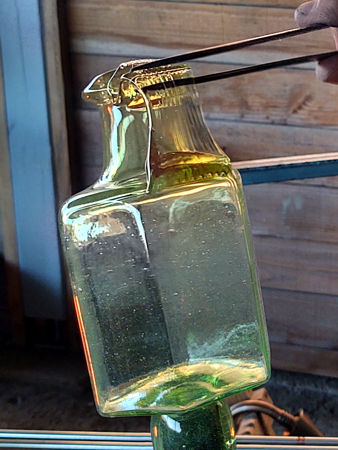

The upper attachment Casting-off the handle

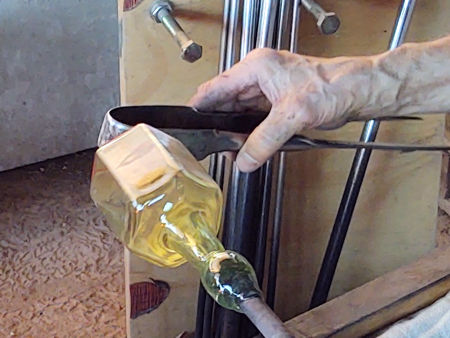

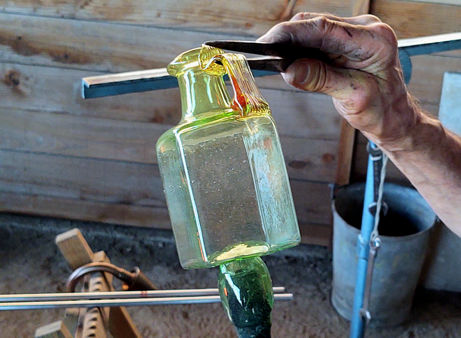

Shaping the handle Shaping the handle

Ugly Head Bottle

This is blown into a fired, two-piece ceramic mould made by David. It is coated with graphite, which acts as a separator.

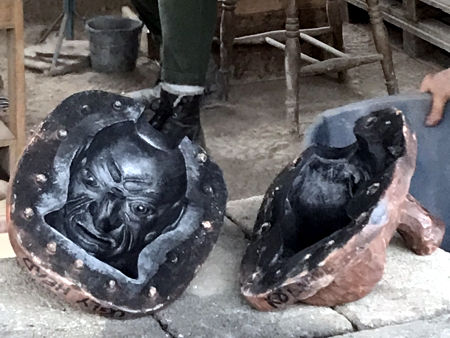

The ceramic mould

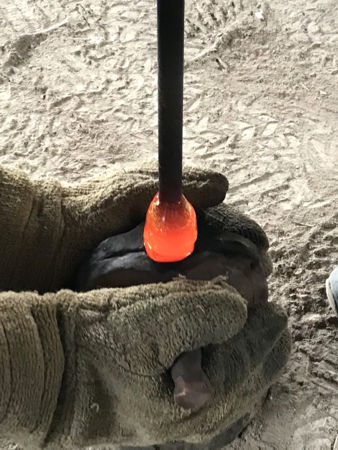

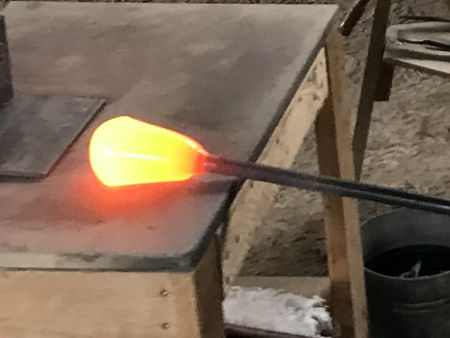

Marvering the gather Blowing the parison

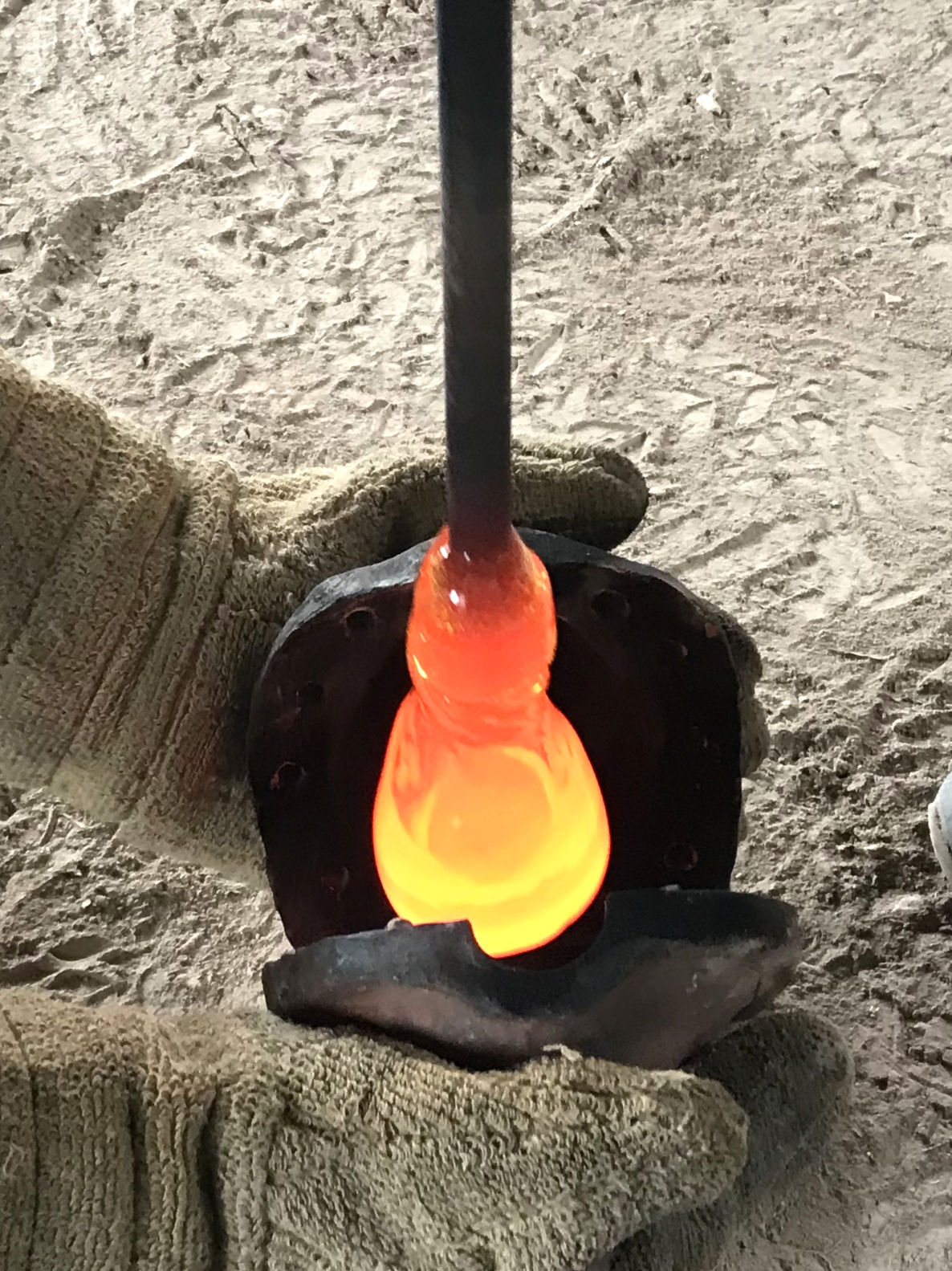

Into the mould Blowing into the closed mould
Ready for the punty Attaching the punty

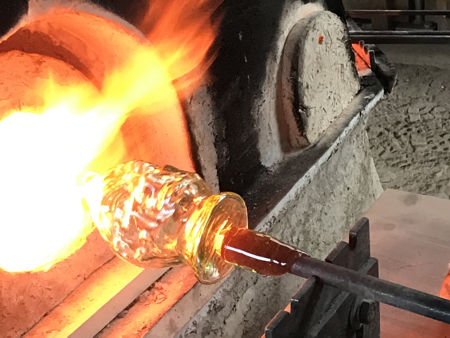

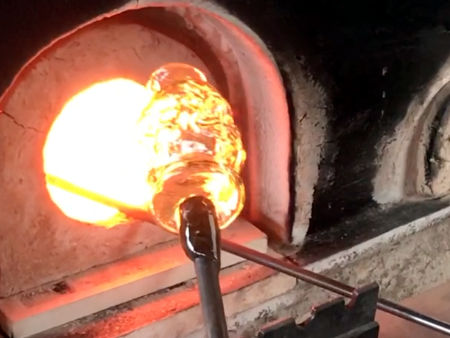

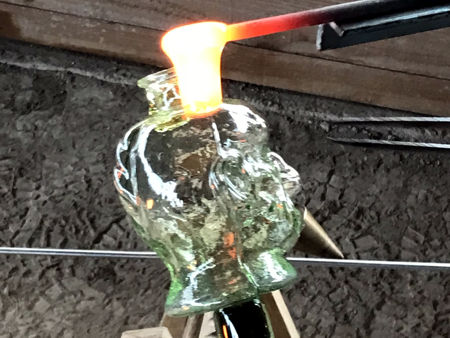

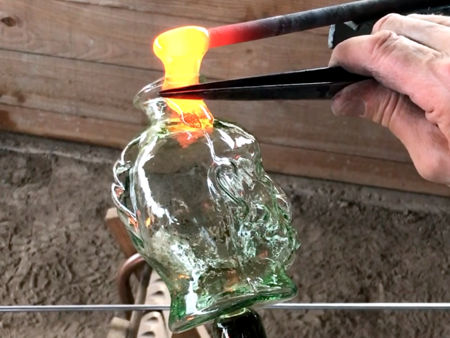

Reheating the neck Opening the rim

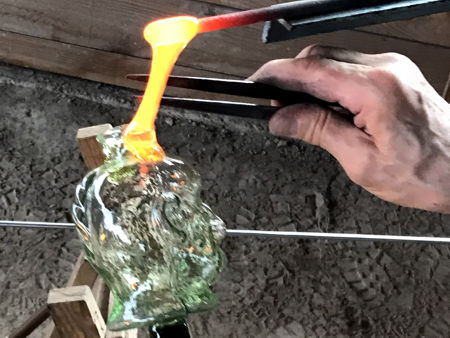

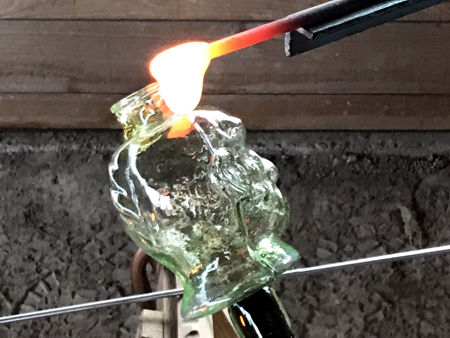

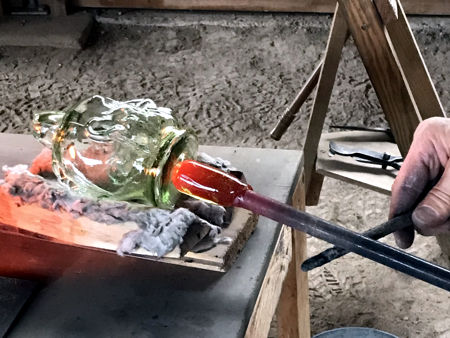

Gathering a handle Attaching the first handle

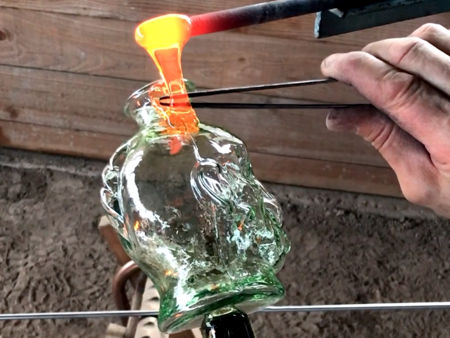

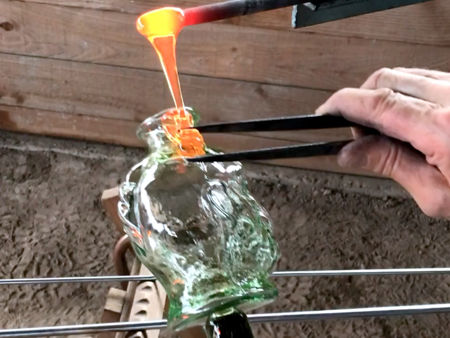

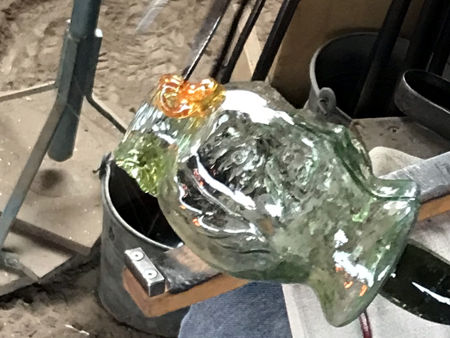

Forming the handle Forming the handle
Forming the handle Forming the handle

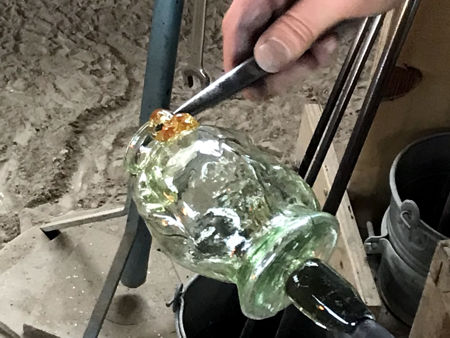

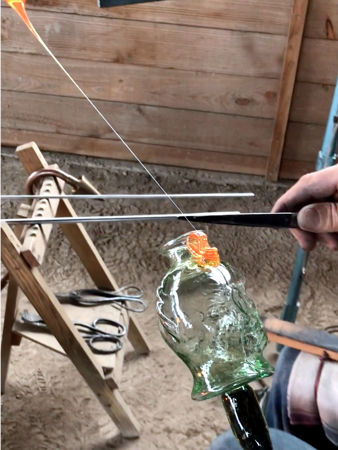

Casting off Casting off
Shaping the handle Shaping the handle

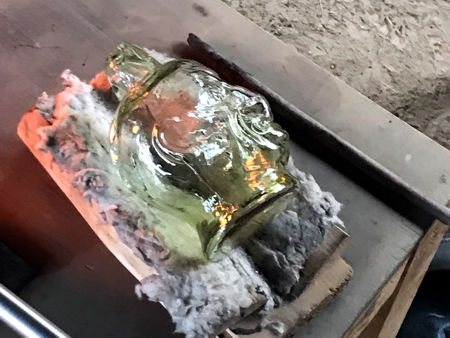

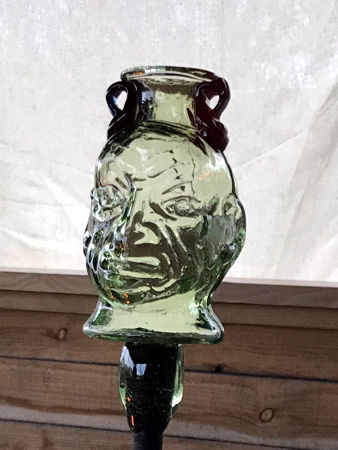

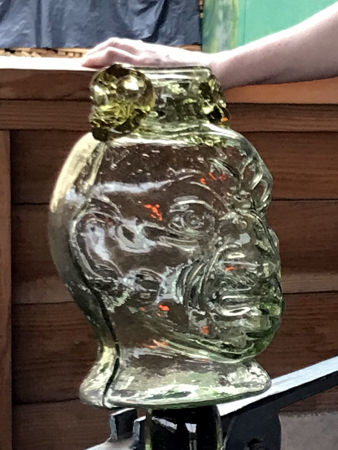

The finished vessel One with blue handles
