2021 Furnace ('Phoenix') and Lehr at Quarley - Furnace Superstructure Build

Projects: 2019 Onwards   Woodshed Build   The Woodpile   IFoG Furnace Removal   Firepit Reconstruction

Furnace Superstructure Build   Phoenix Firing One   Repairs after Firing One   Phoenix Firing Two   Repairs after Firing Two

------------------------------------------------

Building The Lower Walls   Building The Upper Walls   Drying Out The Furnace   Tunnel Height Adjustment

The Lower Walls

Above the firepit we spread two sheets of plastic. This was to allow for movement of the furnace walls due to shrinking on drying. A bucket on its side would be the form for the stoke hole opening in the wall.

We started by building the inner wall first, taking care to keep it about 2” thick. We reused the plywood form from the IFoG Furnace for the ash hole, and to keep the angle of the wall correct we made a simple measuring device from some scrap wood.

In order to completely encase the ceramic fibre, every opening into the furnace had to be lined with a 2" thickness of daub which joined the inner wall to the outer wall. This can be seen at the stokehole and the ash hole, where we added flanges which became the starting points for the outer wall, and removed the bucket and the form. This allowed us to start on the tunnel, which we built in tandem with the inner wall.

When the inner wall reached gathering hole floor height we set it to the correct shape using a cardboard form and continued to work on the tunnel, building the outer wall and adding the layer of ceramic fibre. The trowel was used to keep the inside surface of the outer wall reasonably flat and to regulate the wall thickness.

We built the outer wall, again about 2” thick, adding the ceramic fibre as we went. Before we built it up too much we drilled the holes for the ceramic pot support bars and added the small rounded shelves for extra support on the inside of the furnace wall.

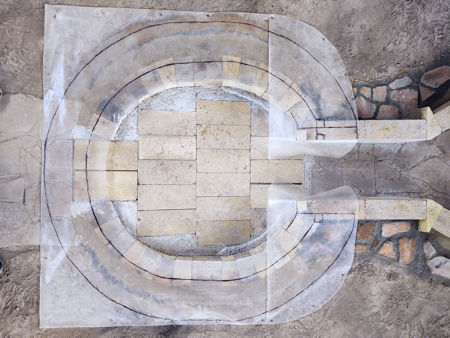

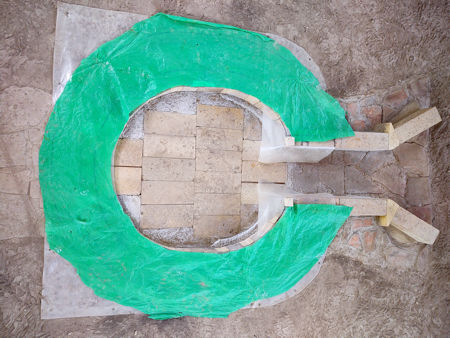

The first layer of plastic sheet with the position of the walls marked out The second layer of plastic which is meant to slide over the first layer

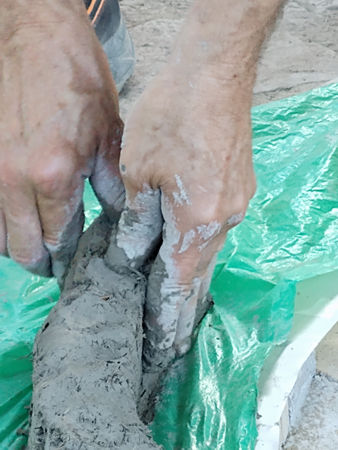

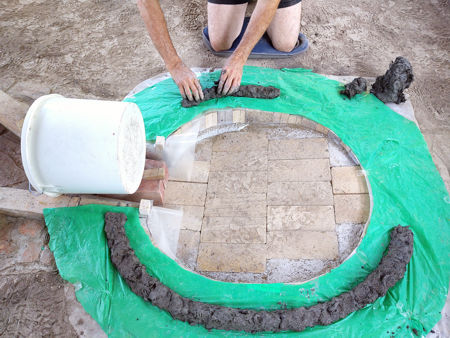

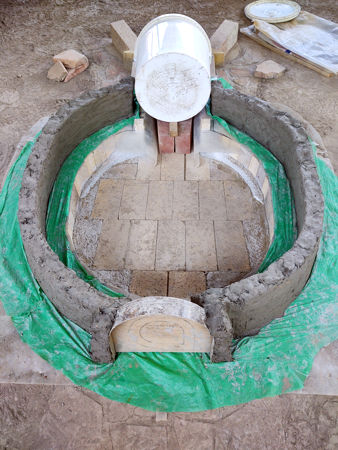

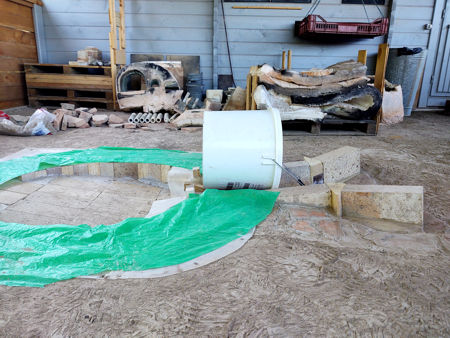

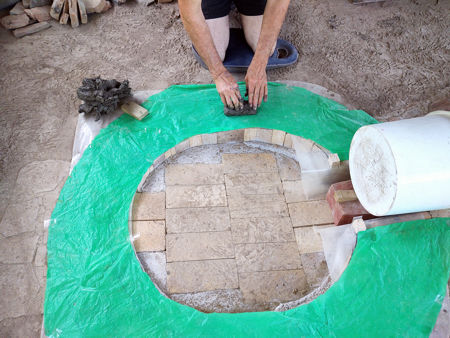

The bucket which will be the form for the stokehole is in position The first handful of daub

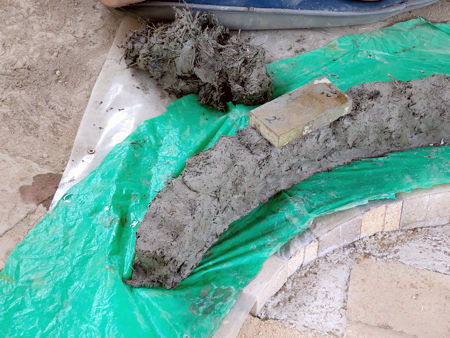

Starting the second part of the wall Aiming for a 2

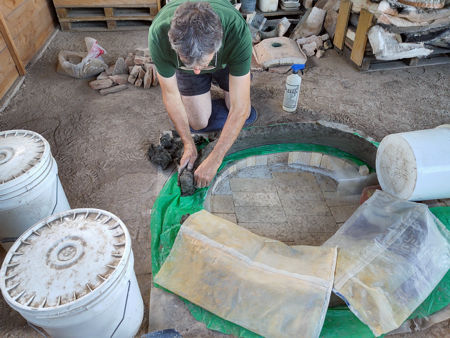

Building the wall Building the wall

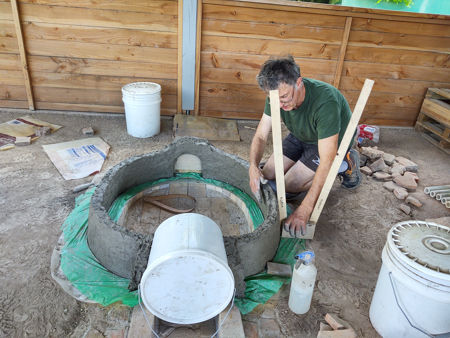

The inner wall Setting the angle of the inner wall

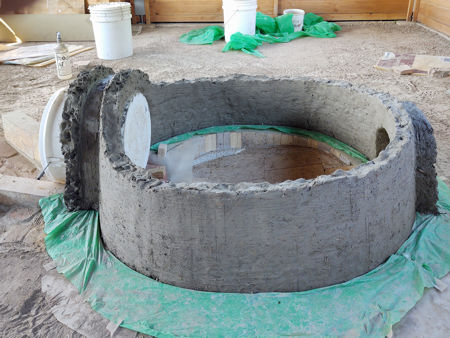

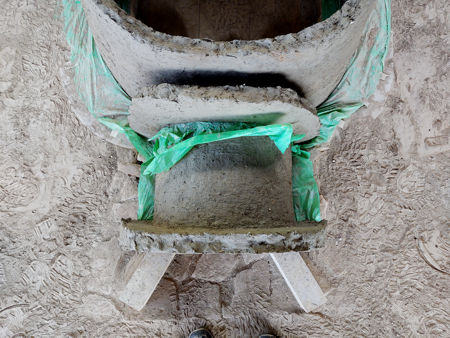

The stokehole and ash hole extended to join with the outer wall Building the inner wall
The inner wall of the stokehole has been started The inner wall of the tunnel has been started

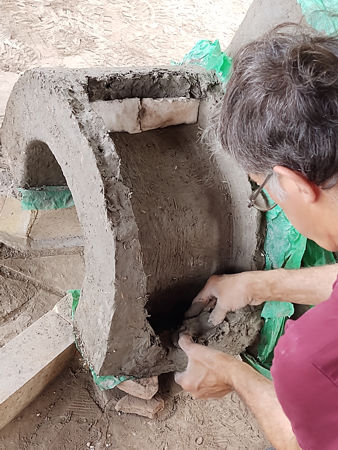

The partly-finished tunnel The partly-finished tunnel

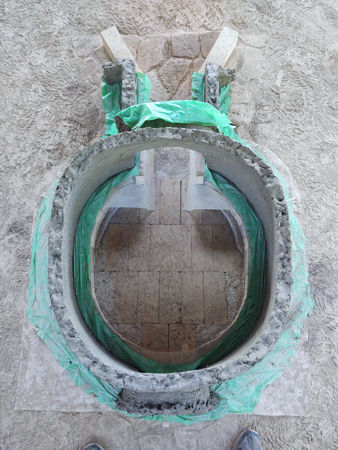

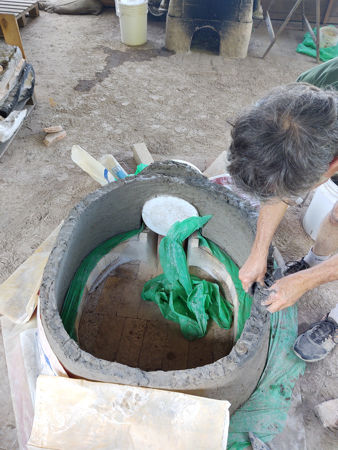

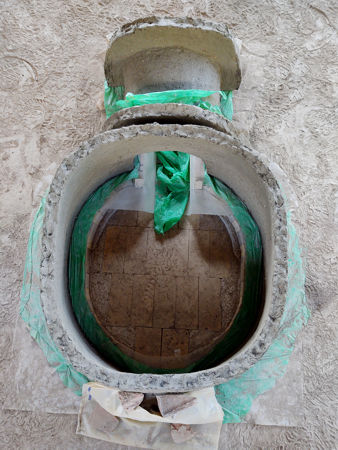

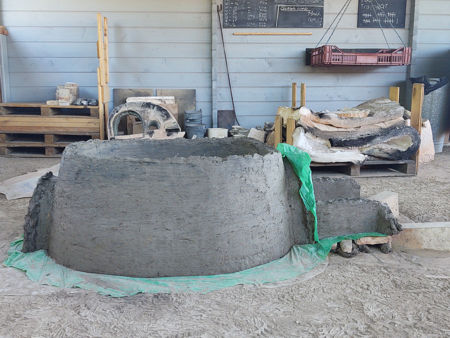

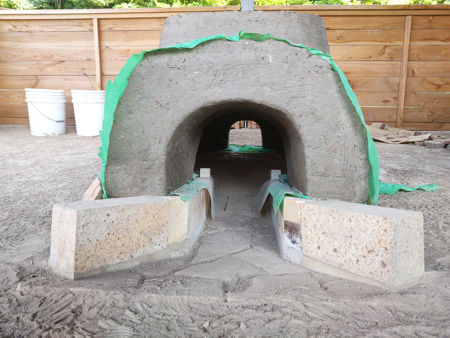

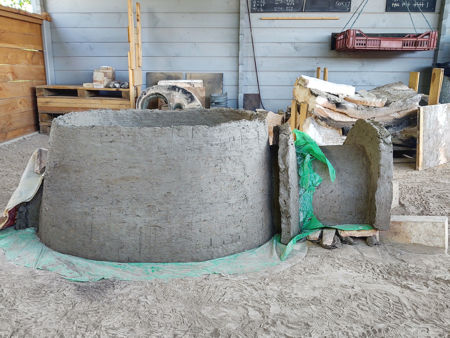

The tunnel entrance The lower inner wall is finished

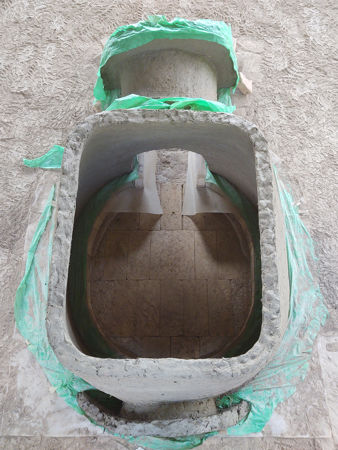

The lower inner wall is finished to just below the gathering hole floor The lower inner wall is finished to just below the gathering hole floor

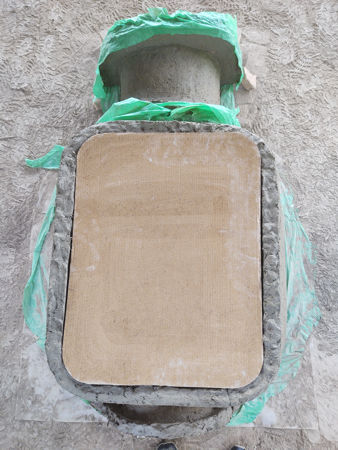

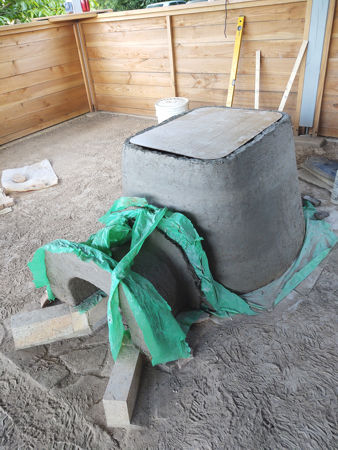

The furnace without the form at this height The furnace with the form at this height

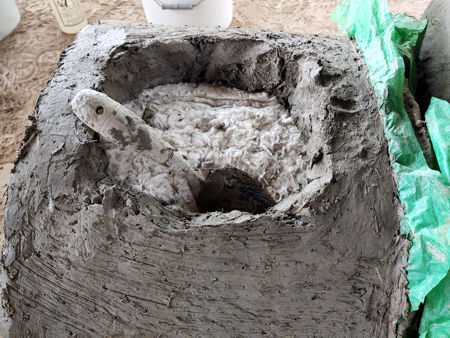

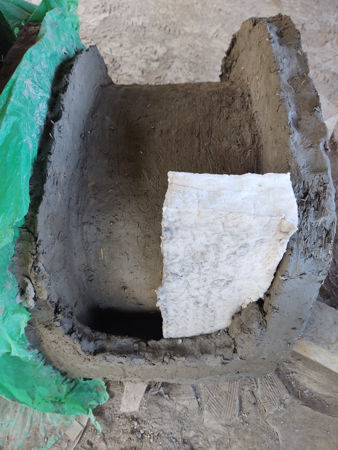

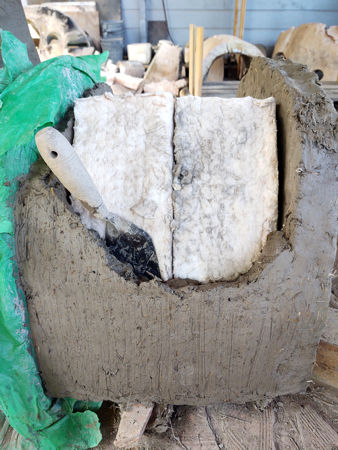

Encasing the ceramic fibre between the inner and outer walls of the tunnel Encasing the ceramic fibre between the inner and outer walls of the tunnel
Encasing the ceramic fibre between the inner and outer walls of the tunnel Encasing the ceramic fibre between the inner and outer walls of the tunnel

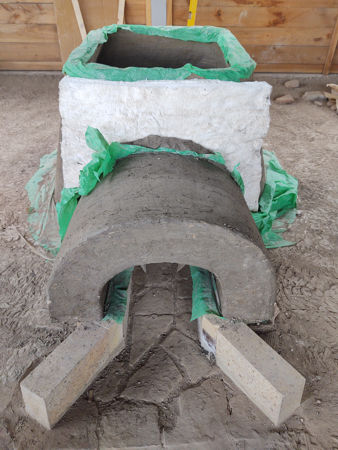

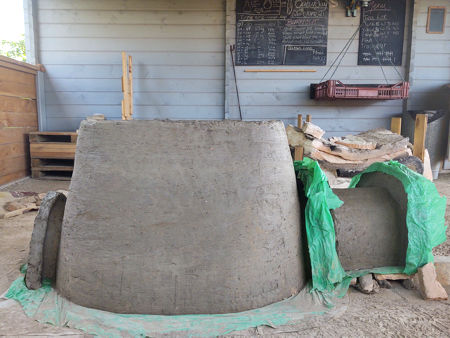

The tunnel is nearly completed The completed tunnel

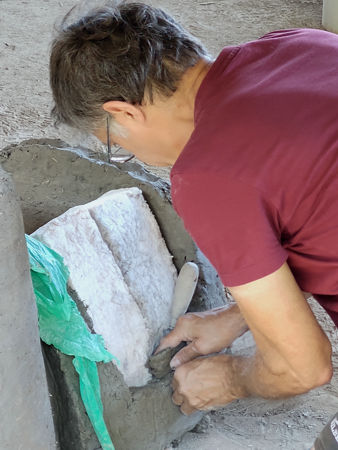

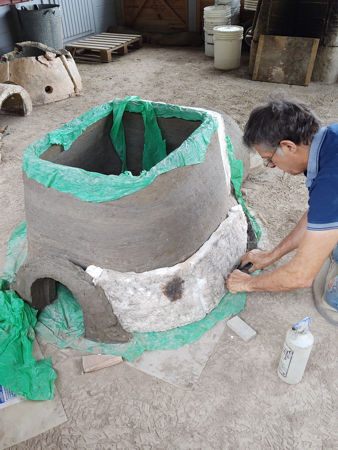

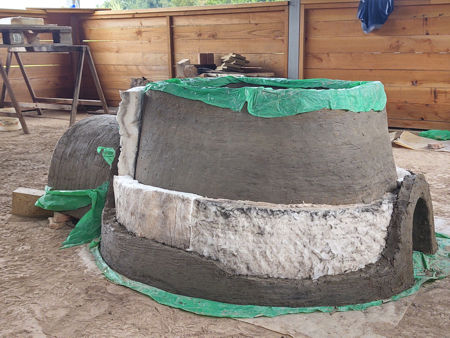

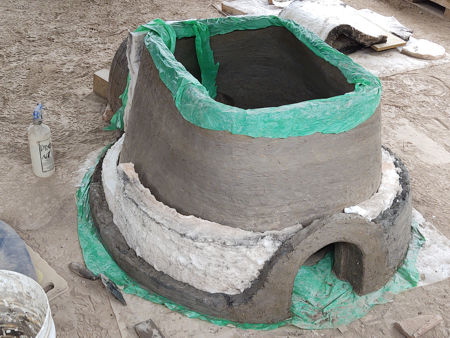

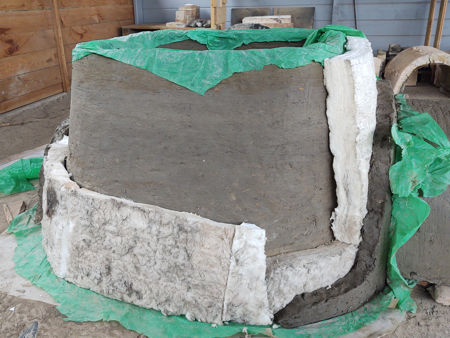

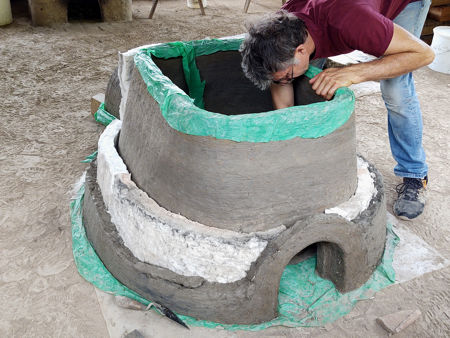

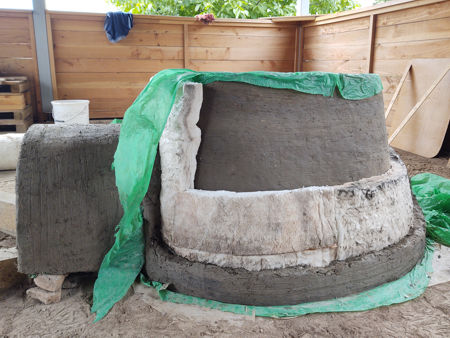

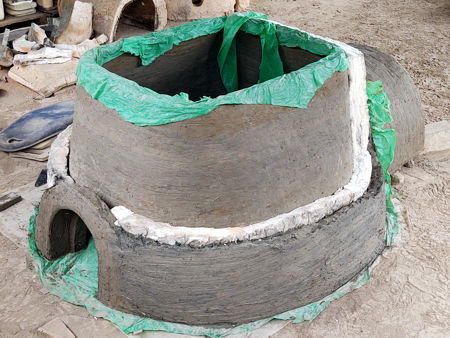

Building the outer wall with the ceramic fibre in place Building the outer wall with the ceramic fibre in place
Building the outer wall with the ceramic fibre in place Building the outer wall with the ceramic fibre in place
Building the outer wall with the ceramic fibre in place Building the outer wall with the ceramic fibre in place

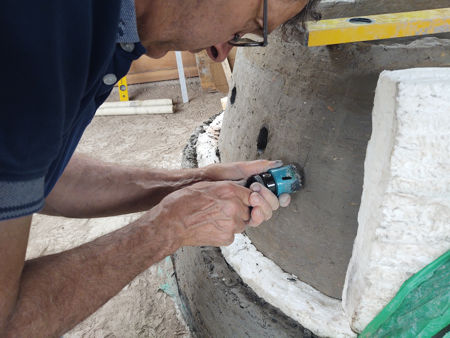

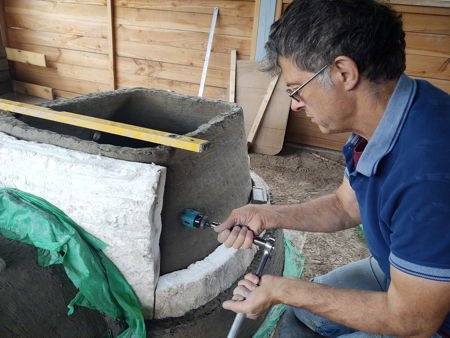

Building the outer wall with the ceramic fibre in place Drilling holes for the shelf support bars

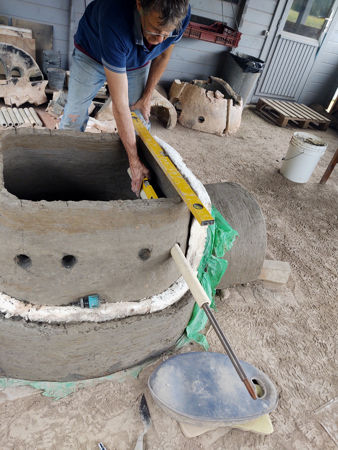

Checking the position for the holes on the opposite side Drilling holes for the shelf support bars

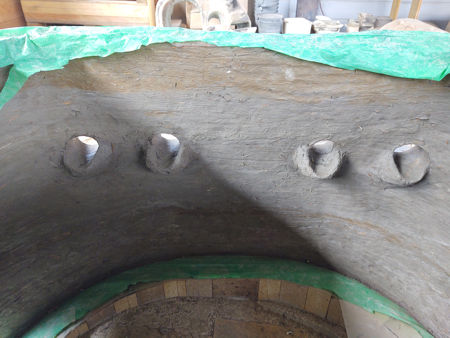

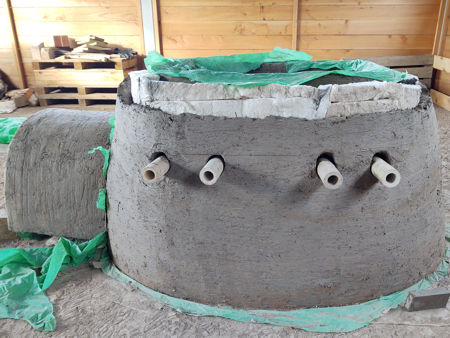

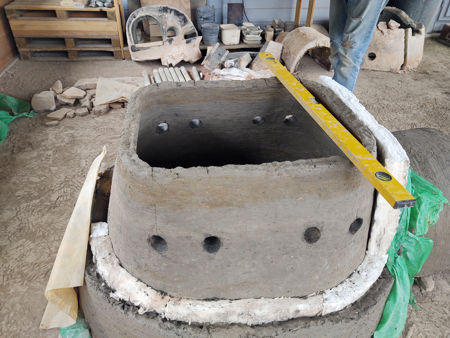

The completed holes The completed holes

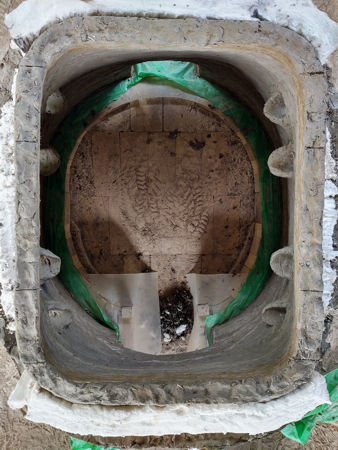

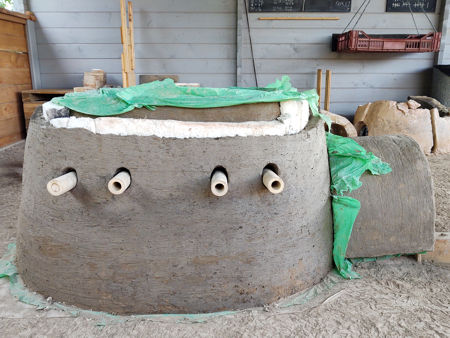

Extra supports for the bars added on the inside Half-close your eyes!

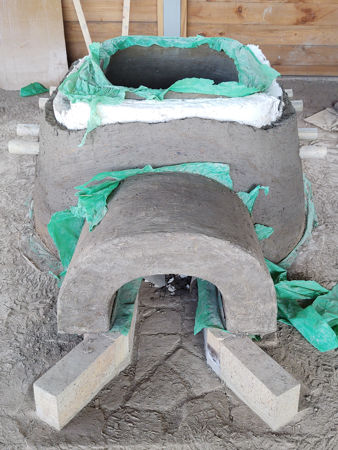

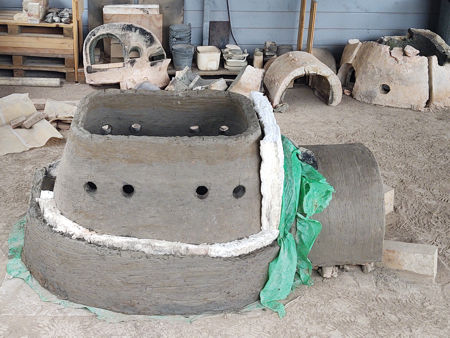

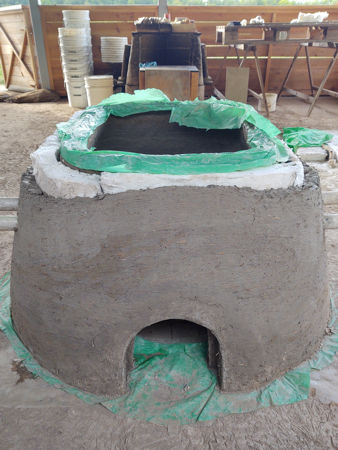

The outer lower wall almost finished The outer lower wall almost finished
The outer lower wall almost finished The outer lower wall almost finished
