The Upper Walls

Building the upper half of the furnace was more complicated, but used less daub than building the lower half. There were ten holes, two shelves and two gathering hole floors to consider. We had premade the forms for the gathering and pipe warming holes, and the top holes were cut-down 3” cardboard tubes. Note that the flanges on the inner part of the large gathering holes were built in as part of the forms, and they acted as stops for the collars and stoppers to sit against.

The gathering hole forms doubled as the forms for the collars and stoppers, and these were made after the gathering holes had been formed.

Each hole had to be isolated from the ceramic fibre blanket by lining it with up to 2” of daub. This led to some awkward shapes for the cavities and some careful cutting of odd pieces of blanket.

Before placing the forms in position, we covered each one with a layer of clingfilm, which acted as a separator and allowed us to extract the forms when the daub had hardened sufficiently.

The shelves below the small gathering holes and pipe warming holes were added to the wall as it was built, and were fully keyed in and integrated.

The vaulted roof in particular had to be built gradually, allowing enough time for the built part to harden before adding more daub. Even so, it had to be adjusted several times by manipulating it from below. Note that we finished building the outer roof whilst we were drying the furnace. See photos on this page.

The two sets of slots in the large gathering hole were cut using a hacksaw blade. A slot was also cut into each of the shelves in front of the pipe warming holes to allow a length of metal bar with rounded slots cut into it to support the irons. We call this a 'piglet'!

The Phoenix was sculpted by David. A plaster mould was taken of the original, and copies in daub generated from the mould were stuck to the furnace walls whilst they were still damp.

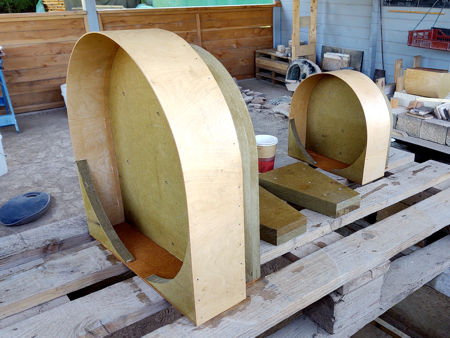

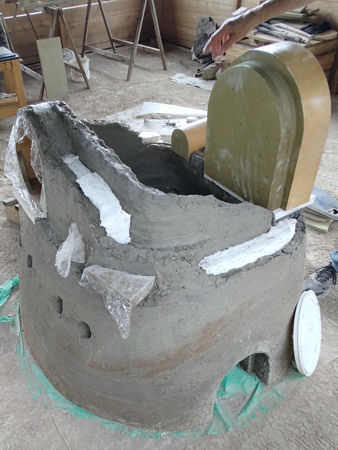

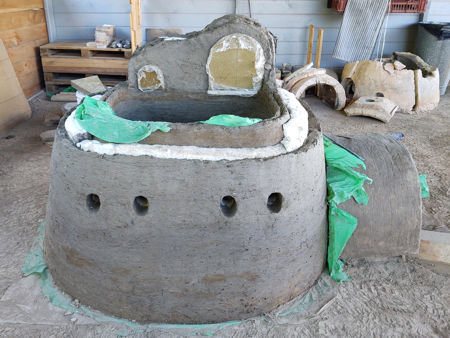

Wooden forms for the larger gathering holes and the pipe warming holes The forms in use on the right-hand side of the furnace The forms in use on the right-hand side of the furnace

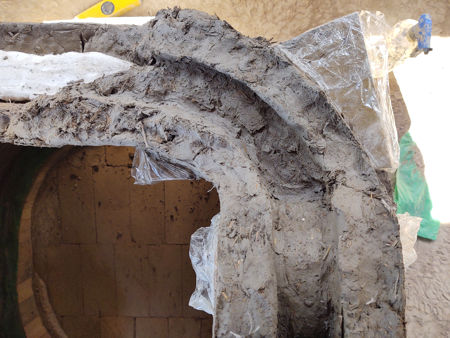

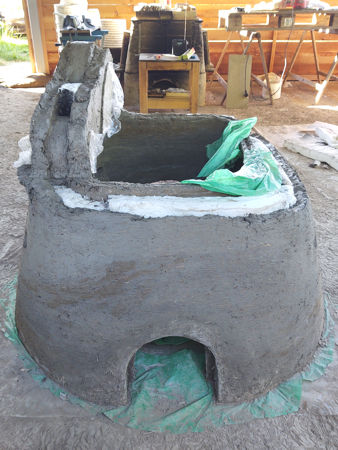

Building up the right-hand side of the furnace The right-hand side showing the wall thickness

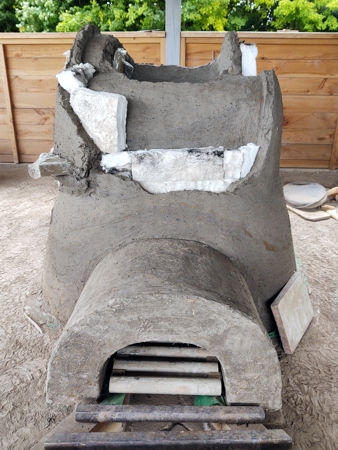

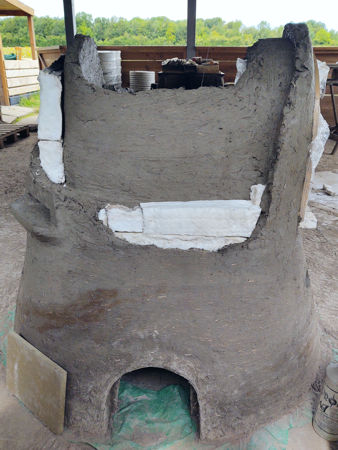

The right-hand side from the back The right-hand side showing the cavity for the ceramic fibre

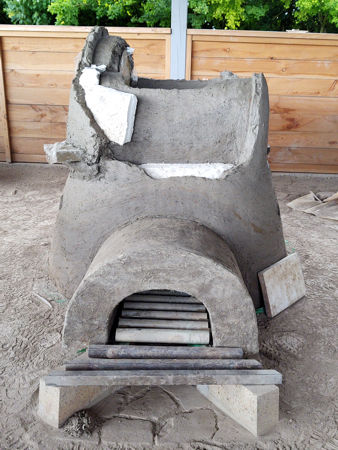

The right-hand side The start of the inner wall

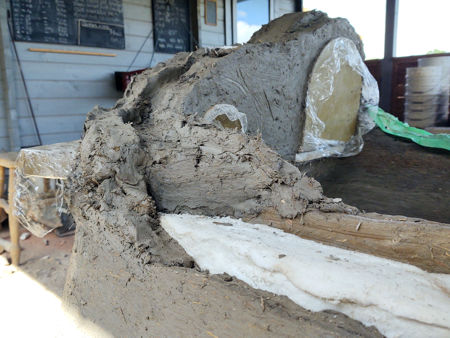

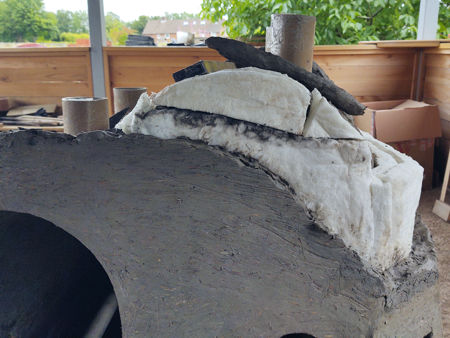

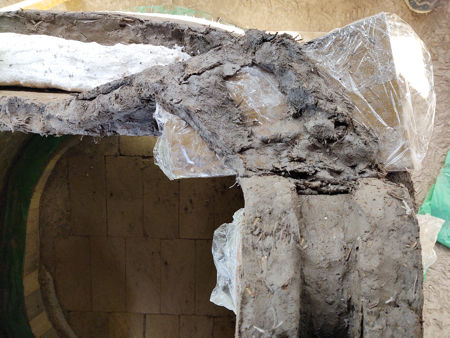

Top view of the back right-hand corner showing the wall built over the pipe warming hole and the cavity for the ceramic fibre blanket Side view of the back right-hand corner showing the wall built over the pipe warming hole and the cavity for the ceramic fibre blanket
Top view of the back right-hand corner showing the wall built over the pipe warming hole and the cavity for the ceramic fibre blanket Side view of the back right-hand corner showing the wall built over the pipe warming hole and the cavity for the ceramic fibre blanket

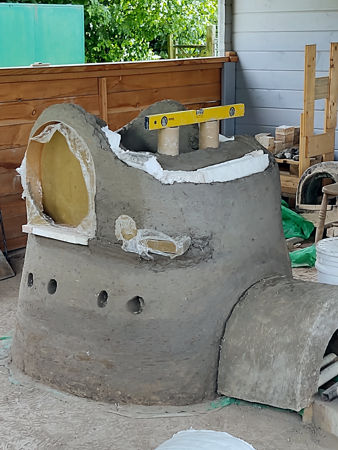

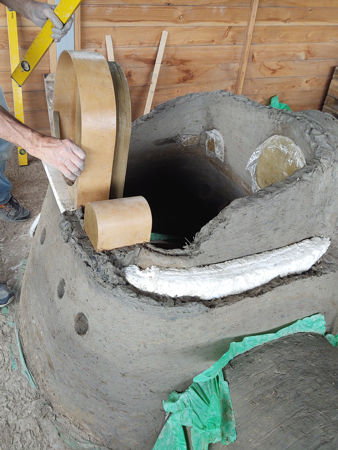

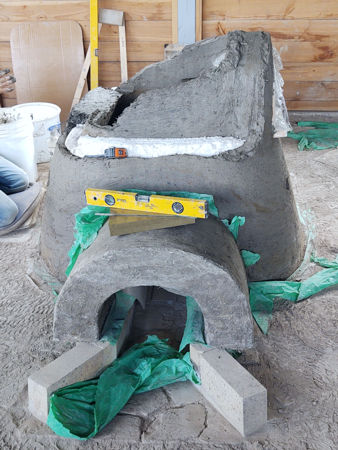

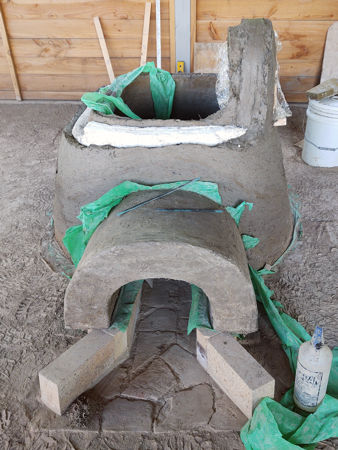

Progress on the inner wall Setting the angle for the large gathering hole

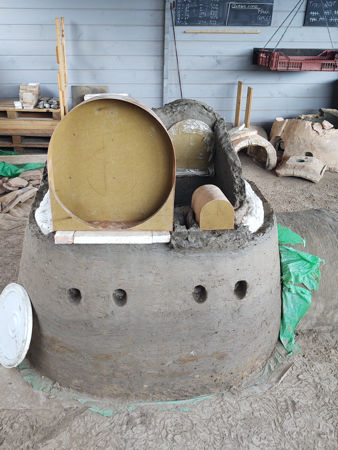

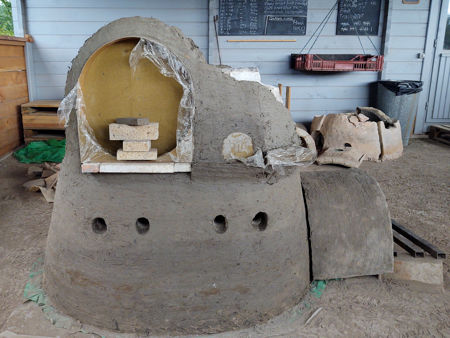

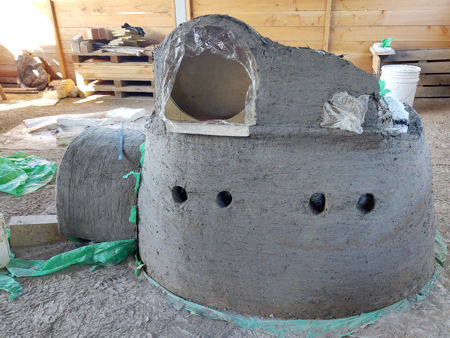

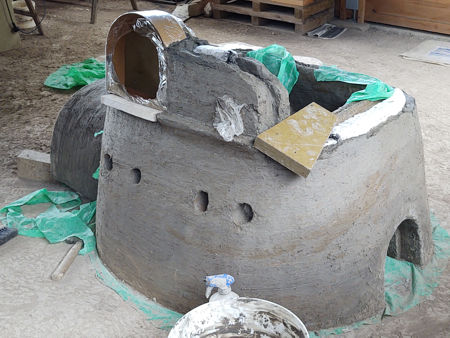

The gathering hole forms for the left-hand side in position The gathering hole forms for the left-hand side in position

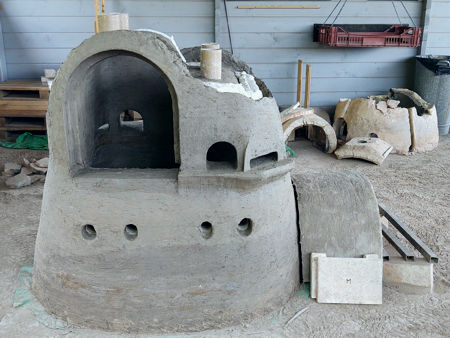

The gathering hole forms for the left-hand side in position The forms on the right-hand side have been removed

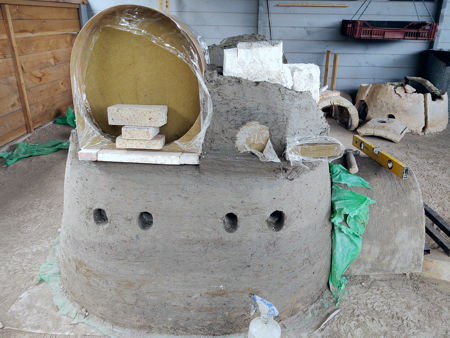

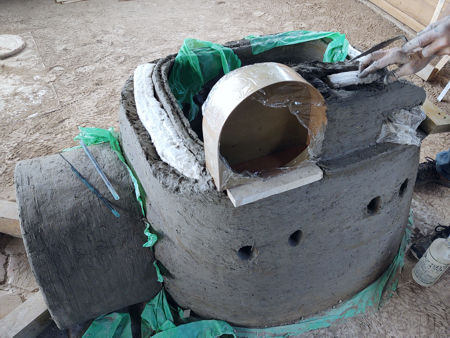

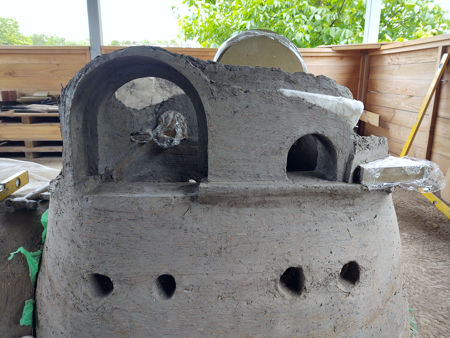

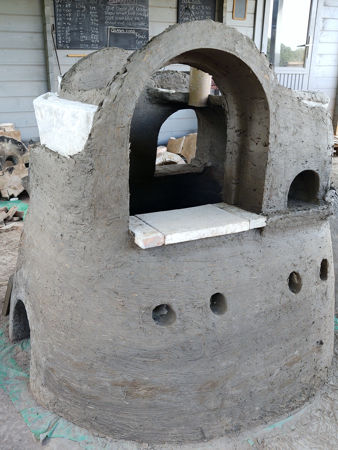

All three forms on the left-hand side in position Working on the right-hand side pipe warming hole
Working on the right-hand side pipe warming hole

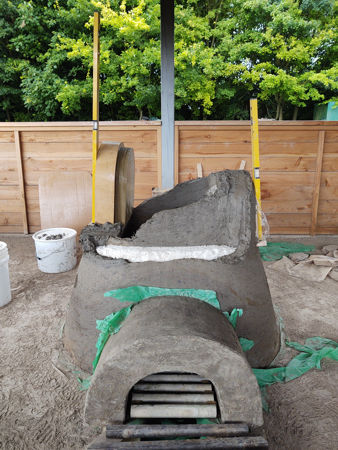

The inner wall almost reaching roof level The forms have been built around

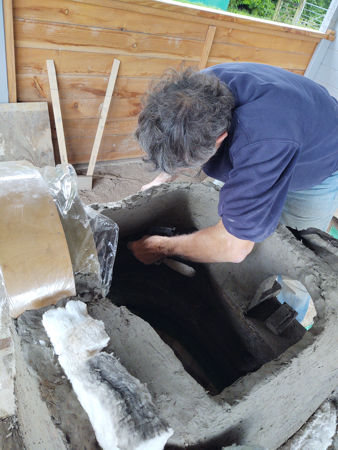

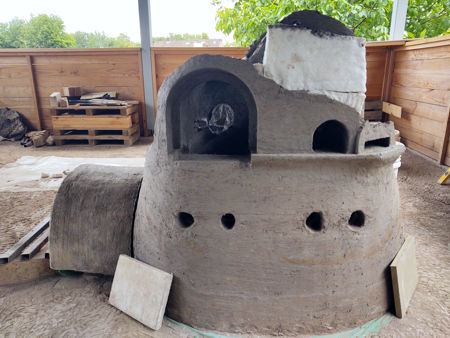

More work on the inner wall General view - note the height and extent of the daub above the gathering holes: this is where a large crack appears during drying
Starting on the inner roof Genersl view

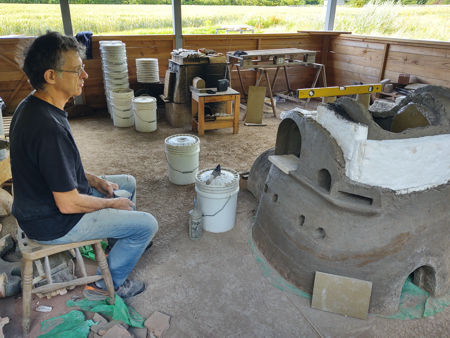

The lower top hole forms in position Tea break!

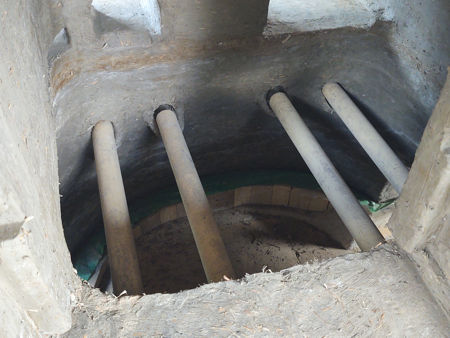

A view of a top hole form. Also showing the arrangement of the mullite slabs for the gathering hole floor. The lower top hole forms in position

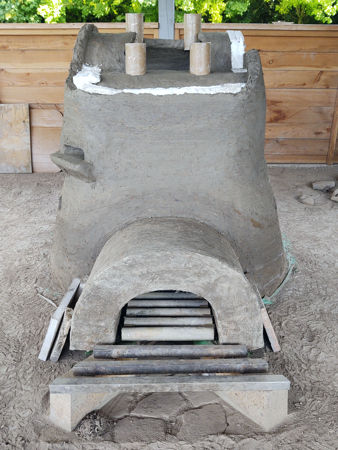

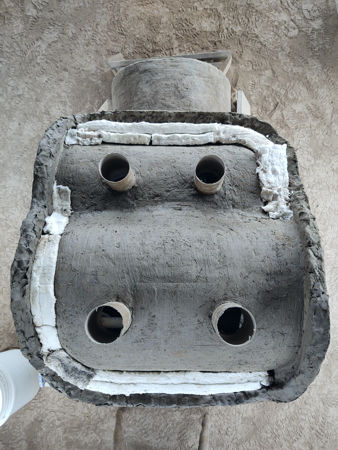

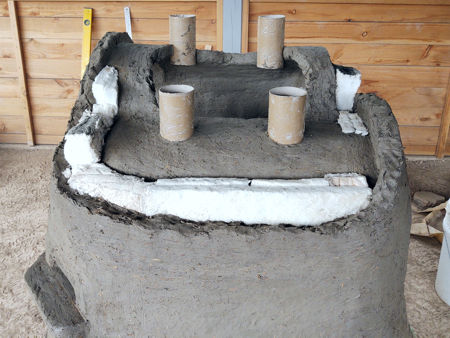

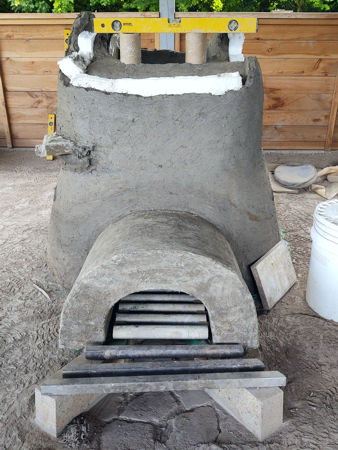

All four top hole forms in position All four top hole forms in position

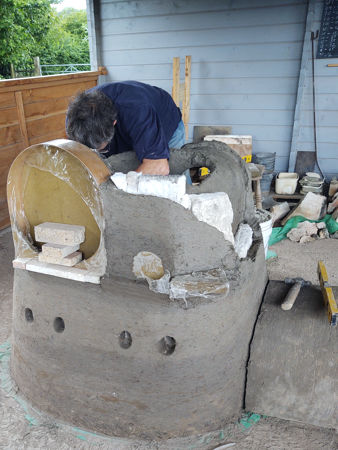

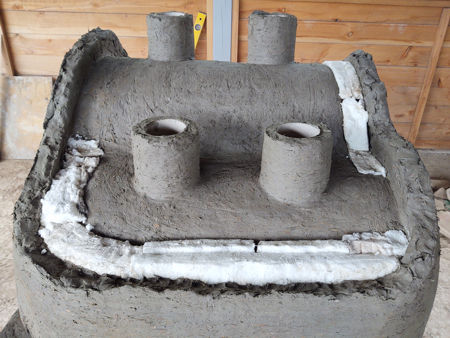

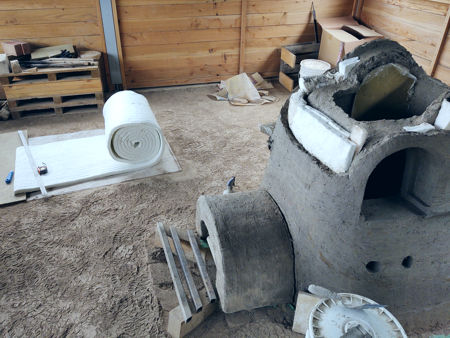

All four top hole forms in position The arrangement of some of the ceramic fibre blanket on the right-hand side

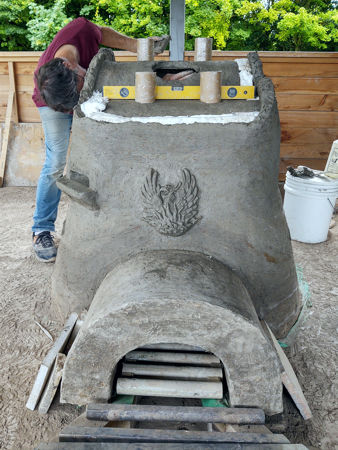

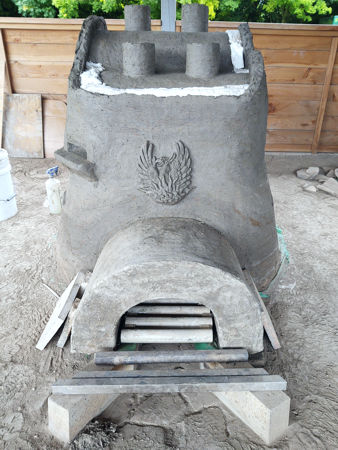

The front Phoenix sculpted by David Working on the inner roof

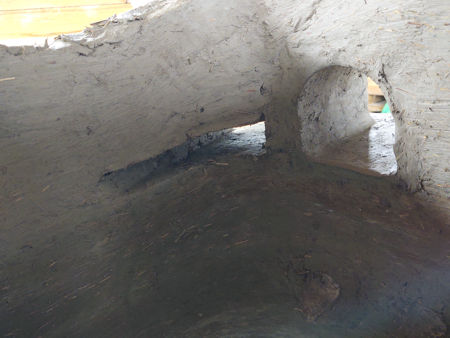

The inner roof The inner roof

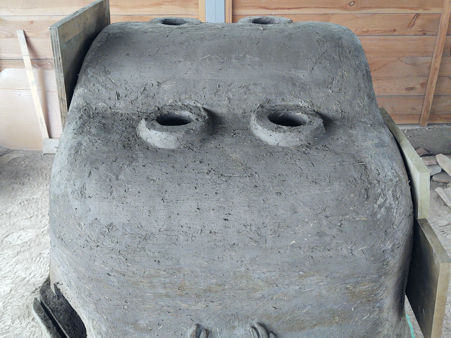

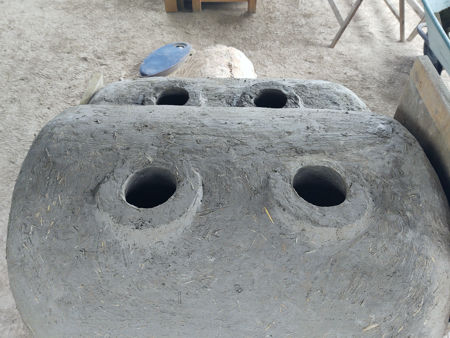

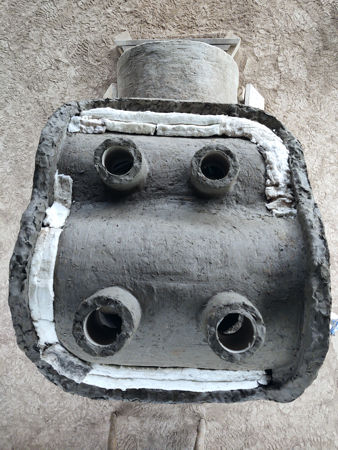

The inner roof with the top holes formed The inner roof with the top holes formed

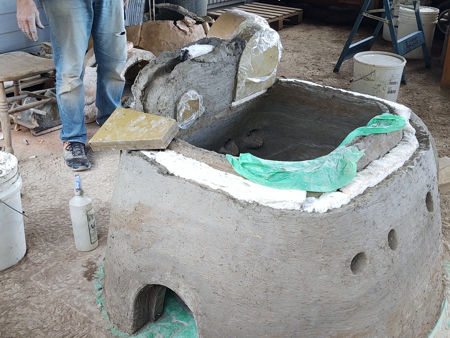

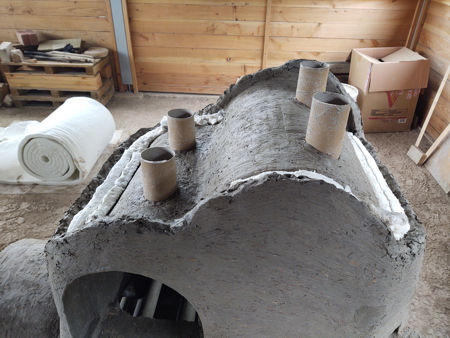

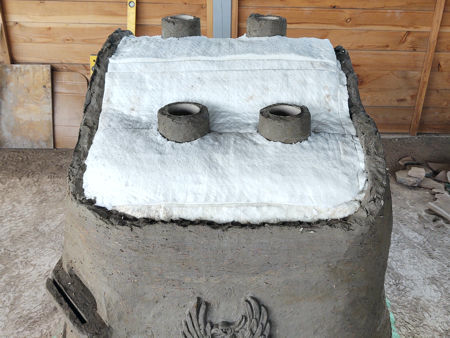

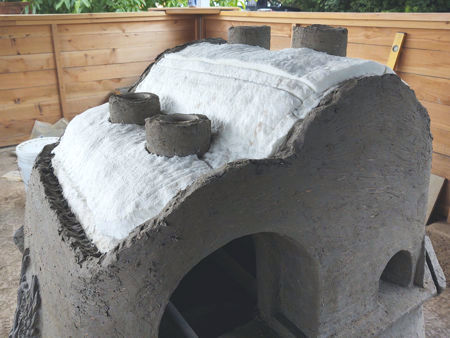

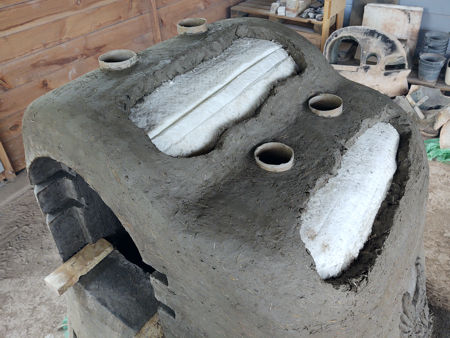

The inner roof with the top holes formed The layer of ceramic fibre blanket on the roof
The layer of ceramic fibre blanket on the roof The outer roof almost finished

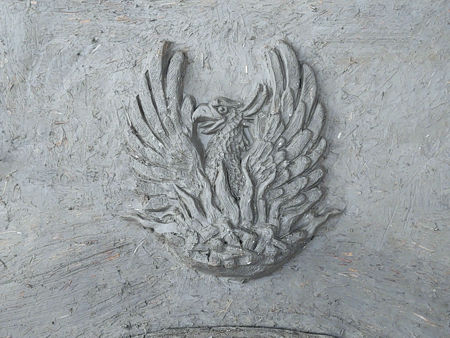

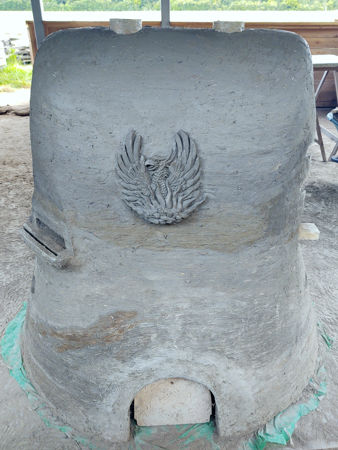

David's Phoenix on the back wall The finished roof
The finished roof The shelf support bars in position
